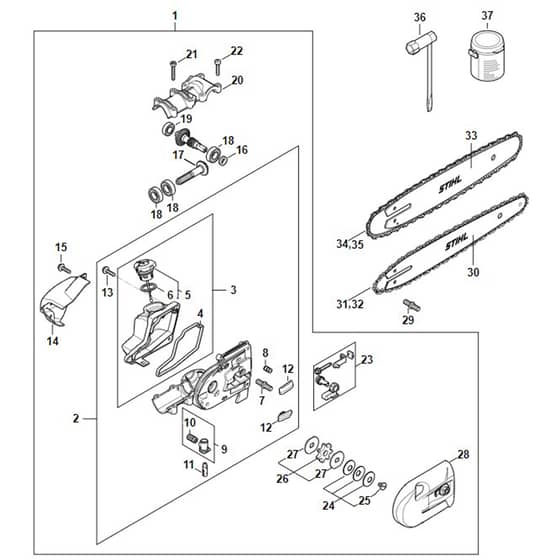

Stihl HTA 160.0 - Gear Head - Parts Diagram

Name: Stihl HTA 160.0 - Gear Head - Parts Diagram
SKU: hta_160_0_gear_head-group
Price: 0.60 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HTA 160.0 - Gear Head - Parts Diagram

Description

Stihl HTA 160.0 - Gear Head - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4182 640 0145 Out of stock	Gear head (Contains 2 - 28)	£448.94 £374.12
2	ST4182 640 0555 Out of stock	Gear housing (Contains 3 - 13)	£135.53 £112.94
3	ST4182 350 0306 Out of stock	Oil tank (Contains 4 - 6)	£28.80 £24.00
4	ST4182 351 1000 Out of stock	Gasket	£5.52 £4.60
5	ST0000 350 0529 Out of stock	Filler cap (Contains 6)	£15.00 £12.50
6	ST9645 948 2470 Out of stock	O-ring 23x3	£0.72 £0.60
7	ST4182 664 2401 Out of stock	Collar screw M8	£8.04 £6.70
8	ST1128 640 9100 Out of stock	Valve	£4.63 £3.86
9	ST4182 640 3800 Out of stock	Pickup body (Contains 10)	£8.04 £6.70
10	ST1117 647 6801 Out of stock	Strainer	£3.06 £2.55
11	ST4138 640 3200 Out of stock	Oil pump	£26.75 £22.29
12	ST1123 648 6600 In stock	Bumper strip	£1.96 £1.63
13	ST0000 951 1100 In stock	Screw	£1.51 £1.26
14	ST4182 640 4300 Out of stock	Cover	£12.88 £10.73
16	ST4138 642 8201 Out of stock	Ring	£7.30 £6.08
17	ST4182 640 7317 Out of stock	Set of pinions	£160.94 £134.12
18	ST9503 003 5193 Out of stock	Grooved ball bearing DIN625-6001-2RS	£19.44 £16.20
19	ST9503 003 9863 Out of stock	Grooved ball bearing DIN625-609-2RS	£17.16 £14.30
20	ST4182 641 0401 Out of stock	Gearbox cover	£17.16 £14.30
21	ST9022 371 1073 In stock	Spline screw IS-M5x32	£1.07 £0.89
22	ST9022 341 1050 In stock	Spline screw IS-M5x25	£1.07 £0.89
23	ST4182 660 0700 Out of stock	Chain tightener	£26.88 £22.40
24	ST4182 160 2100 Out of stock	Friction clutch (Contains 25)	£15.00 £12.50
25	STLA01 162 4200 Out of stock	Collar screw	£8.04 £6.70
26	ST0000 640 2003 Out of stock	Chain sprocket 3/8"P 7 teeth (Contains 27)	£10.86 £9.05
27	ST4182 162 8900 Out of stock	Washer	£2.69 £2.24
28	ST4182 640 1702 Out of stock	Chain sprocket cover	£26.88 £22.40
29	ST0000 664 2415 Out of stock	Collar screw D9/M8	£3.72 £3.10
30	ST3005 000 3905 Out of stock	Light 01 \| 30cm/12" \| 3/8" P \| 11mm/.043"	£36.18 £30.15
31	ST3610 000 0044 In stock	Picco Micro Mini 3 \| 61 PMM3 44 \| 3/8" P \| 11mm/.043" \| 44	£10.56 £8.80
33	ST3005 008 7603 Out of stock	Light 01 \| 25cm/10" \| 3/8" P \| 11mm/.043"	£41.82 £34.85
34	ST3610 000 0039 Out of stock	Picco Micro Mini 3 \| 61 PMM3 39 \| 3/8" P \| 11mm/.043" \| 39	£9.36 £7.80
36	ST1129 890 3401 Out of stock	Combination wrench	£9.60 £8.00
37	ST0781 120 1004 Out of stock	Gear lubricant 40 g	£28.85 £24.04
