Stihl HTA 160.0 - Drive Tube Assembly - Parts Diagram

Stihl HTA 160.0 - Drive Tube Assembly - Parts Diagram
Stihl HTA 160.0 - Drive Tube Assembly - Parts Diagram

Description

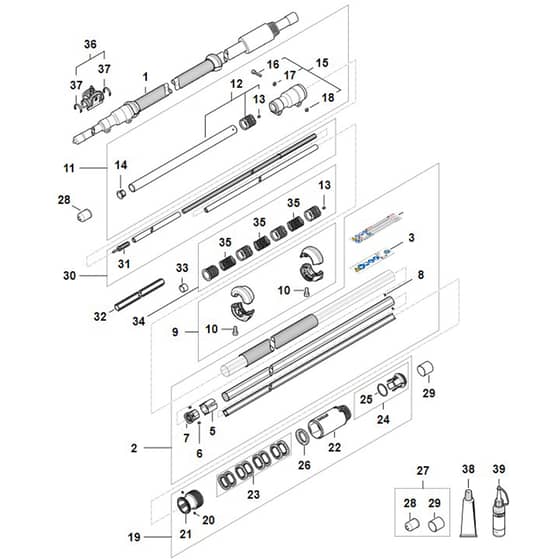

Stihl HTA 160.0 - Drive Tube Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 Drive tube assembly (Contains 2 + 3 + 5 - 8 + 11 - 26 + 30 - 35)
Drive tube assembly (Contains 2 + 3 + 5 - 8 + 11 - 26 + 30 - 35)
ST4182 710 7167 Out of stock
Drive tube assembly (Contains 2 + 3 + 5 - 8 + 11 - 26 + 30 - 35)
£446.46 £372.05

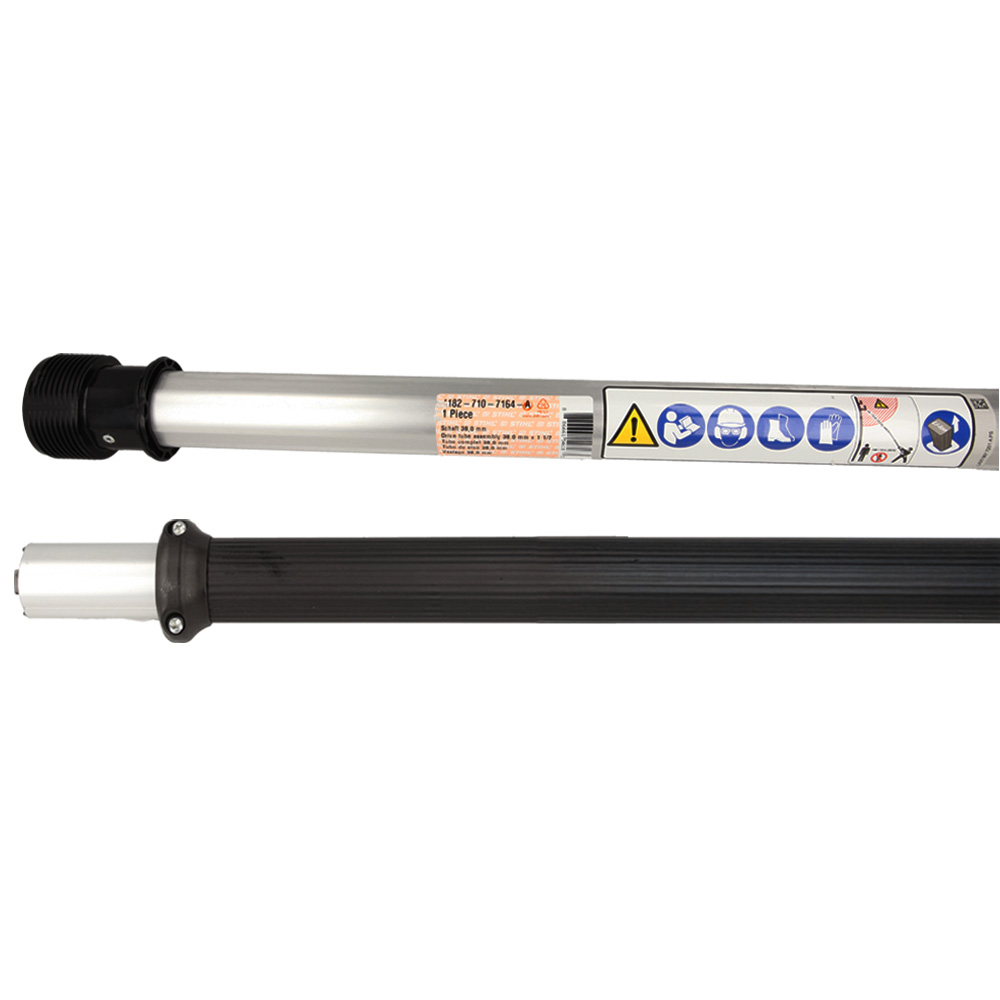

  2 Drive tube assembly 38.0-mm-x-1-1/2-
Drive tube assembly 38.0-mm-x-1-1/2-
ST4182 710 7164 Out of stock
Drive tube assembly 38.0-mm-x-1-1/2-" (Contains 3 + 5 - 8)
£141.00 £117.50

  3 Warning pictogram
Warning pictogram
STLA01 967 7201 Out of stock
Warning pictogram
£5.52 £4.60

  5 Spacer ring
Spacer ring
ST4182 711 9822 Out of stock
Spacer ring
£10.49 £8.74

  7 Bearing
Bearing
ST4182 740 3209 Out of stock
Bearing
£50.82 £42.35

  10 Screw IS P5x16
Screw IS P5x16
ST9074 477 4130 In stock
Screw IS P5x16
£0.86 £0.72

  11 Drive tube assembly 25.4 mm x 1
Drive tube assembly 25.4 mm x 1
ST4182 710 7170 Out of stock
Drive tube assembly 25.4 mm x 1 " (Contains 12 - 18)
£55.22 £46.02

  12 Drive tube assembly 25.4 mm x 1
Drive tube assembly 25.4 mm x 1
ST4182 710 7163 Out of stock
Drive tube assembly 25.4 mm x 1 " (Contains 13)
£35.95 £29.96

  13 Blind rivet 4x6.5
Blind rivet 4x6.5
ST9438 003 3171 Out of stock
Blind rivet 4x6.5
£0.91 £0.76

  15 Clamp (Contains 16 - 18)
Clamp (Contains 16 - 18)
ST4857 716 6503 Out of stock
Clamp (Contains 16 - 18)
£32.00 £26.67

  16 Washer 6.4
Washer 6.4
ST9294 021 0140 Out of stock
Washer 6.4
£0.48 £0.40

  17 Pan head screw IS M6x30
Pan head screw IS M6x30
ST9022 341 1370 Out of stock
Pan head screw IS M6x30
£1.19 £0.99

  18 Hexagon nut M6
Hexagon nut M6
ST9210 319 0900 In stock
Hexagon nut M6
£0.46 £0.38

  19 Nut (Contains 20 - 26)
Nut (Contains 20 - 26)
ST4182 820 1600 Out of stock
Nut (Contains 20 - 26)
£74.11 £61.76

  20 Blind rivet 3x5-ST/ST
Blind rivet 3x5-ST/ST
ST9440 003 1851 Out of stock
Blind rivet 3x5-ST/ST
£0.83 £0.69

  21 Clamp
Clamp
ST4182 716 6520 Out of stock
Clamp
£24.96 £20.80

  22 Nut
Nut
ST4182 716 0320 Out of stock
Nut
£23.16 £19.30

  23 Kit spring washer
Kit spring washer
ST4182 007 1005 In stock
Kit spring washer
£9.49 £7.91

  24 Set O-ring (Contains 25)
Set O-ring (Contains 25)
ST4182 007 0800 Out of stock
Set O-ring (Contains 25)
£10.49 £8.74

  25 O-ring N 33x25
O-ring N 33x25
ST9645 948 7895 Out of stock
O-ring N 33x25
£0.00 £0.00

  26 Spacer ring
Spacer ring
ST4182 716 9400 Out of stock
Spacer ring
£10.49 £8.74

  27 Cap kit (Contains 28 + 29)
Cap kit (Contains 28 + 29)
ST4182 007 1010 Out of stock
Cap kit (Contains 28 + 29)
£12.88 £10.73

  28 Cap
Cap
ST4133 717 2000 In stock
Cap
£2.17 £1.81

  29 Cap
Cap
ST4182 717 2000 Out of stock
Cap
£2.50 £2.08

  30 Drive shaft (Contains 31)
Drive shaft (Contains 31)
ST4182 710 3227 Out of stock
Drive shaft (Contains 31)
£107.76 £89.80

  31 Driver
Driver
ST4182 740 3503 Out of stock
Driver
£20.28 £16.90

  32 Flexible liner
Flexible liner
STLA01 711 7311 Out of stock
Flexible liner
£10.49 £8.74

  33 Ring
Ring
ST4138 711 9002 Out of stock
Ring
£3.29 £2.74

  34 Set of bearings (Contains 13 + 35)
Set of bearings (Contains 13 + 35)
ST4182 007 0602 Out of stock
Set of bearings (Contains 13 + 35)
£45.97 £38.31

  35 Spring
Spring
ST4138 711 9100 Out of stock
Spring
£3.13 £2.61

  36 Clip HT (Contains 37)
Clip HT (Contains 37)
ST0000 790 8600 Out of stock
Clip HT (Contains 37)
£14.15 £11.79

  37 Spring
Spring
ST0000 791 3110 Out of stock
Spring
£2.44 £2.03

  38 Gearbox grease (80g tube)
Gearbox grease (80g tube)
ST0781 120 1117 In stock
Gearbox grease (80g tube)
£8.74 £7.28

  39 Press fluid OH 723
Press fluid OH 723
ST0781 957 9000 Out of stock
Press fluid OH 723
£5.54 £4.62
