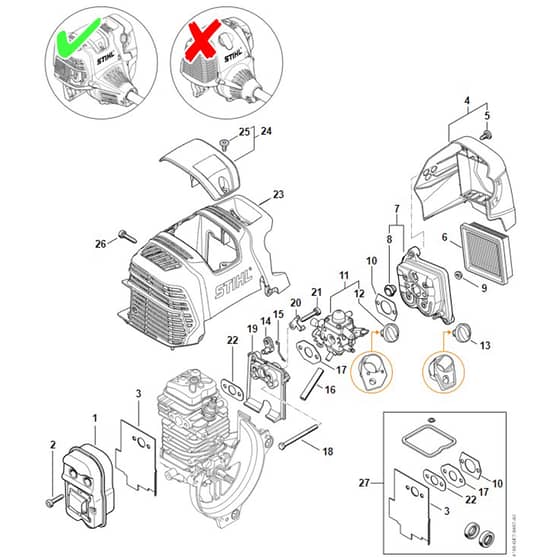

Stihl HT135 - Muffler, Air Filter - Parts Diagram

Description

	Part No.	Details
1	ST4180 140 0603 Out of stock	Muffler	£31.44 £26.20
2	ST9075 478 4159 Out of stock	Pan head self-tapping screw IS-D5x24	£0.97 £0.81
3	ST4180 149 0600 Out of stock	Muffler gasket	£6.54 £5.45
4	ST4180 140 1009 Out of stock	Filter cover (Contains 5)	£24.53 £20.44
6	ST4180 141 0300 In stock	Air filter	£8.92 £7.43
7	ST4180 140 2807 Out of stock	Filter housing (Contains 8)	£24.26 £20.22
8	ST4134 123 7500 Out of stock	Grommet	£1.76 £1.47
9	ST9216 261 0700 In stock	Hexagon nut M5	£0.48 £0.40
10	ST4114 149 1205 In stock	Gasket	£1.34 £1.12
11	ST4180 120 0619 Out of stock	Carburetor 4180/19 (Contains 12)	£125.16 £104.30
12	STZ000 042 K001 Out of stock	Choke lever kit	£7.12 £5.93
13	ST4180 180 9500 In stock	Choke knob	£7.46 £6.22
14	ST4180 182 2800 In stock	Lever	£3.60 £3.00
15	ST4180 182 1500 Out of stock	Throttle rod	£2.76 £2.30
16	ST4180 141 8602 Out of stock	Impulse hose	£3.78 £3.15
17	ST4180 129 0905 In stock	Gasket	£2.52 £2.10
18	ST9007 319 1135 Out of stock	Hexagon head screw M5x65	£1.76 £1.47
19	ST4180 121 1606 Out of stock	Spacer flange.	£18.36 £15.30
20	ST4180 182 9600 Out of stock	Ground strap	£1.76 £1.47
21	ST9075 478 4175 Out of stock	Pan head self-tapping screw IS-D5x28	£1.15 £0.96
22	ST4180 129 0906 Out of stock	Gasket	£2.52 £2.10
23	ST4180 080 1606 In stock	Shroud	£30.46 £25.38
24	ST4180 080 0401 Out of stock	Cover (Contains 25)	£7.12 £5.93
25	ST0000 951 1114 In stock	Screw M5x12	£1.68 £1.40
27	ST4180 007 1037 Out of stock	Set of gaskets	£17.24 £14.37
