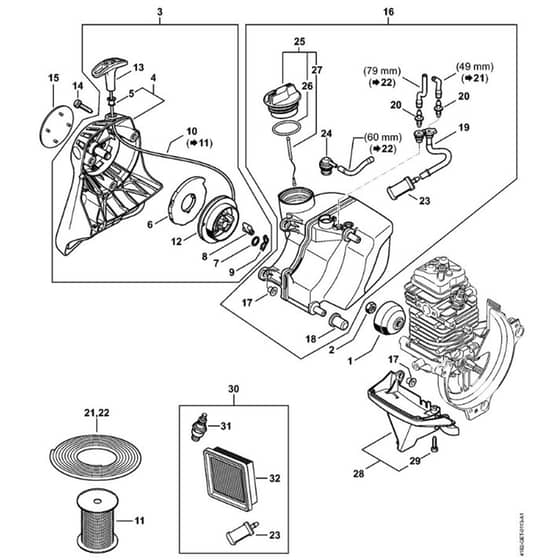

Stihl HT134 - Rewind Starter, Fuel Tank - Parts Diagram

Name: Stihl HT134 - Rewind Starter, Fuel Tank - Parts Diagram
SKU: ht134_rewind_starter_fuel_tank-group
Price: 0.49 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HT134 - Rewind Starter, Fuel Tank - Parts Diagram

Description

Stihl HT134 - Rewind Starter, Fuel Tank - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4223 195 0600 In stock	Starter cup	£10.27 £8.56
2	ST9210 261 1140 In stock	Hexagon nut M8x1	£0.60 £0.50
3	ST4182 190 4001 Out of stock	Rewind starter (Contains 4 - 10 + 12 + 13)	£58.63 £48.86
4	ST4182 190 0401 Out of stock	Starter cover (Contains 5)	£30.61 £25.51
5	ST9416 868 6650 In stock	Rivet 6.5x0.5x8.8	£1.31 £1.09
6	ST4180 190 0600 In stock	Rewind spring	£9.43 £7.86
7	ST0000 958 0923 In stock	Washer	£1.09 £0.91
8	ST4116 195 7200 In stock	Pawl	£2.26 £1.88
9	ST1118 195 3500 In stock	Spring	£1.08 £0.90
10	ST0000 195 8203 Out of stock	Starter rope Ø 3x850 mm	£3.16 £2.63
11	ST0000 930 2211 Out of stock	Starter rope Ø 3 mm x 60.8 m	£59.89 £49.91
11	ST0000 930 2208 Out of stock	Starter rope Ø 3 mm x 30.5 m	£37.54 £31.28
12	ST4128 195 0400 Out of stock	Rope rotor	£8.76 £7.30
13	ST4140 195 3400 In stock	Starter grip	£3.94 £3.28
14	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.86 £0.72
16	ST4182 350 0401 Out of stock	Fuel tank (Contains 17 - 20 + 23 - 27)	£74.11 £61.76
17	ST9991 003 5087 In stock	Sleeve 7.5x6.8	£0.59 £0.49
18	ST4180 352 8100 Out of stock	Insert	£2.02 £1.68
20	ST4148 353 2700 Out of stock	Connector	£2.20 £1.83
21	ST0000 937 5004 Out of stock	Hose 3.1x5.7 mm x 1 m R5	£35.20 £29.33
22	ST0712 923 8004 In stock	Hose 3.1x5.7 mm x 10 m R3	£34.94 £29.12
22	ST0000 930 2803 In stock	Hose 3.1x5.7 mm x 1 m R3	£4.03 £3.36
23	ST0000 350 3521 In stock	Pickup body	£5.78 £4.82
24	ST0000 350 5807 In stock	Tank vent	£10.06 £8.38
25	ST0000 350 0527 In stock	Filler cap (Contains 26 + 27)	£7.58 £6.32
26	ST9645 951 3890 Out of stock	O-ring 35x3-FPM 80	£1.72 £1.43
27	ST0000 350 0900 Out of stock	Rope	£1.24 £1.03
28	ST4180 350 6502 Out of stock	Cover. (Contains 29)	£9.25 £7.71
29	ST9075 478 3018 Out of stock	Pan head self-tapping screw IS-D4x18	£0.74 £0.62
31	3945 In stock	Spark plug NGK CMR6H	£4.55 £3.79
32	ST4180 141 0300 In stock	Air filter	£8.48 £7.07
