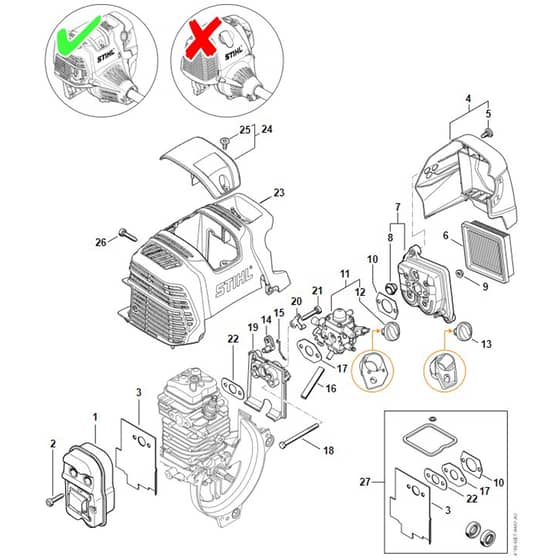

Stihl HT132 - Muffler, Air Filter - Parts Diagram

Description

	Part No.	Details
1	ST4180 140 0603 Out of stock	Muffler	£28.69 £23.91
2	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.86 £0.72
3	ST4180 149 0600 Out of stock	Muffler gasket	£6.05 £5.04
4	ST4180 140 1009 Out of stock	Filter cover (Contains 5)	£23.46 £19.55
6	ST4180 141 0300 In stock	Air filter	£8.48 £7.07
7	ST4180 140 2807 Out of stock	Filter housing (Contains 8)	£23.20 £19.33
8	ST4134 123 7500 Out of stock	Grommet	£1.69 £1.41
9	ST9216 261 0700 In stock	Hexagon nut M5	£0.46 £0.38
10	ST4114 149 1205 In stock	Gasket	£1.18 £0.98
11	ST4180 120 0619 Out of stock	Carburetor 4180/19 (Contains 12)	£125.65 £104.71
12	STZ000 042 K001 Out of stock	Choke lever kit	£7.12 £5.93
13	ST4180 180 9500 In stock	Choke knob	£7.14 £5.95
14	ST4180 182 2800 In stock	Lever	£3.46 £2.88
15	ST4180 182 1500 Out of stock	Throttle rod	£2.60 £2.17
16	ST4180 141 8602 Out of stock	Impulse hose	£3.56 £2.97
17	ST4180 129 0905 In stock	Gasket	£2.35 £1.96
18	ST9007 319 1135 Out of stock	Hexagon head screw M5x65	£1.67 £1.39
19	ST4180 121 1606 Out of stock	Spacer flange.	£17.53 £14.61
20	ST4180 182 9600 Out of stock	Ground strap	£1.63 £1.36
21	ST9075 478 4175 Out of stock	Pan head self-tapping screw IS-D5x28	£1.03 £0.86
22	ST4180 129 0906 Out of stock	Gasket	£2.35 £1.96
23	ST4180 080 1606 In stock	Shroud	£29.11 £24.26
24	ST4180 080 0401 Out of stock	Cover (Contains 25)	£6.80 £5.67
25	ST0000 951 1114 In stock	Screw M5x12	£1.54 £1.28
27	ST4180 007 1037 Out of stock	Set of gaskets (Contains 3 + 10 + 17 + 22)	£16.03 £13.36
