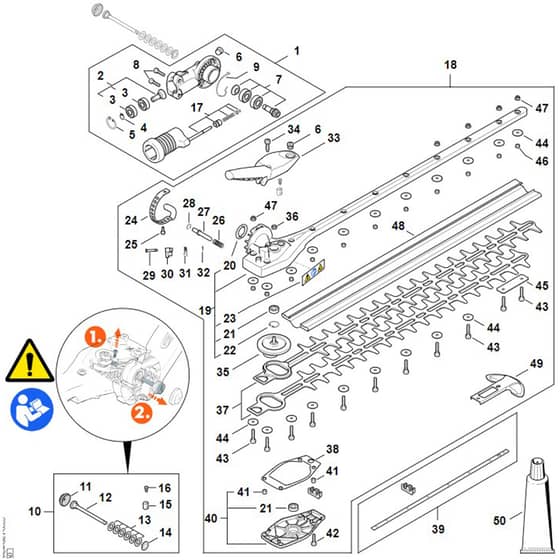

Stihl HLA135 - Angle Drive, Adjustable Thru 145°, 500 Mm - Parts Diagram

Description

Stihl HLA135 - Angle Drive, Adjustable Thru 145°, 500 Mm - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4243 640 0535 In stock	Gear housing (Contains 2 - 9 + 17)	£93.60 £78.00
0	ST4243 649 0303 Out of stock	Gasket	£2.29 £1.91
2	ST4243 640 2502 In stock	Drive pinion	£21.94 £18.28
3	ST9503 003 9870 Out of stock	Grooved ball bearing 609-2Z	£13.46 £11.22
4	ST9455 621 0750 In stock	Circlip 9x1	£0.76 £0.63
5	ST9456 621 2660 In stock	Circlip 24x1.2	£1.15 £0.96
6	ST4226 641 6500 In stock	Plug screw	£2.57 £2.14
7	ST4243 640 2503 In stock	Drive pinion	£31.18 £25.98
8	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.97 £0.81
9	ST4243 642 8201 Out of stock	Ring	£3.36 £2.80
10	ST4243 007 1300 In stock	Set of mounting hardware (Contains 11 - 16)	£18.43 £15.36
11	ST4243 642 1900 Out of stock	Cap	£2.92 £2.43
12	ST4243 951 9700 In stock	Screw	£16.31 £13.59
13	ST9486 648 1012 Out of stock	Cup spring 15x82x08	£0.76 £0.63
14	ST4243 642 7801 Out of stock	Washer	£1.28 £1.07
15	ST4243 642 9002 In stock	Screw sleeve	£2.15 £1.79
16	ST9022 373 0334 Out of stock	Spline screw IS-M3x7-12.9	£0.58 £0.48
17	ST4243 640 4506 Out of stock	Lock	£28.46 £23.72
18	STHA04 640 0550 Out of stock	Gear housing (145° 500 mm) (Contains 19 - 38 + 40 - 49)	£1,051.20 £876.00
19	ST4243 640 0513 Out of stock	Gear housing (145° 500 mm)	£102.12 £85.10
20	ST4243 641 2602 Out of stock	Washer	£1.50 £1.25
21	ST4243 640 5100 In stock	Ball bearing	£10.40 £8.67
22	ST9456 621 2000 Out of stock	Circlips DIN472-19x1	£1.00 £0.83
23	ST0000 967 7299 Out of stock	Warning pictogram	£2.36 £1.97
24	ST4243 642 4601 In stock	Perforated strip	£4.12 £3.43
25	ST9075 478 3012 In stock	Pan head self-tapping screw IS-D4x12	£0.74 £0.62
26	ST0000 997 2020 Out of stock	Compression spring	£1.50 £1.25
27	ST4243 642 4500 Out of stock	Locking pin	£7.93 £6.61
28	ST9458 621 1421 Out of stock	Snap ring DIN7993-B10	£0.76 £0.63
29	ST4243 704 0900 Out of stock	Shaft	£2.36 £1.97
30	ST4243 708 6202 In stock	Notched quadrant	£4.08 £3.40
31	ST4243 182 4501 Out of stock	Torsion spring	£1.26 £1.05
32	ST9460 624 0320 Out of stock	E-clip 3.2	£0.48 £0.40
33	ST4243 700 2901 Out of stock	Adjusting lever	£17.24 £14.37
34	ST9075 478 4136 In stock	Pan head self-tapping screw IS-D5x20	£0.86 £0.72
35	ST4243 640 1600 In stock	Cam	£59.64 £49.70
36	ST9210 319 0900 In stock	Hexagon nut M6	£0.48 £0.40
37	STHA04 710 6050 Out of stock	Blade 500 mm / 20"	£131.88 £109.90
38	ST4243 649 0300 In stock	Gasket	£1.69 £1.41
39	ST4243 007 1003 Out of stock	Cover plate kit 500 mm	£33.59 £27.99
40	ST4243 640 5800 In stock	Gearbox cover	£29.77 £24.81
41	ST0000 988 8600 In stock	Sleeve	£1.20 £1.00
43	ST4237 716 0400 In stock	Spline screw IS-M5x25	£1.72 £1.43
44	ST4237 958 0500 In stock	Washer	£1.28 £1.07
45	ST4243 717 3100 Out of stock	Cover plate	£33.59 £27.99
46	ST4242 641 4900 In stock	Sleeve 4.4 mm	£1.06 £0.88
47	ST9216 263 0700 In stock	Hexagon nut M5	£0.43 £0.36
48	ST0000 790 9200 In stock	Blade guard 500 mm / 20"	£12.89 £10.74
49	ST4237 792 9006 Out of stock	Guide guard	£15.73 £13.11
50	ST0781 120 1109 In stock	Multi-purpose grease (tube 80 g)	£9.12 £7.60
