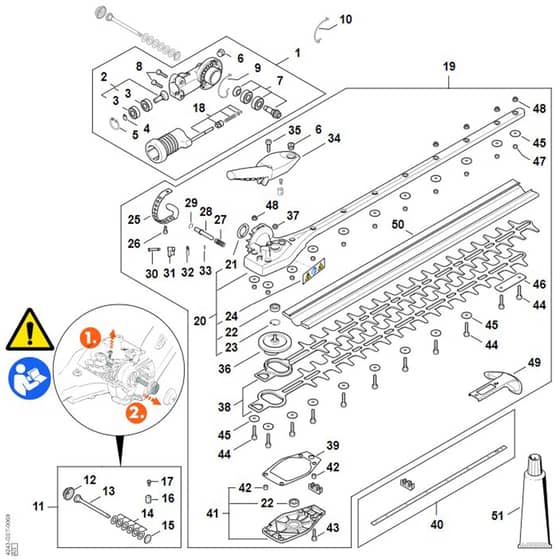

Stihl HL94 KC-E - Angle Drive, Adjustable Thru 145°, 600 Mm - Parts Diagram

Name: Stihl HL94 KC-E - Angle Drive, Adjustable Thru 145°, 600 Mm - Parts Diagram
SKU: hl94_kc_e_angle_drive_adjustable_thru_145_600_mm-group
Price: 0.36 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HL94 KC-E - Angle Drive, Adjustable Thru 145°, 600 Mm - Parts Diagram

Description

Stihl HL94 KC-E - Angle Drive, Adjustable Thru 145°, 600 Mm - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4243 640 0535 In stock	Gear housing (Contains 2 - 9 + 21)	£97.80 £81.50
2	ST4243 640 2502 In stock	Drive pinion (Contains 45385)	£22.06 £18.38
3	ST9503 003 9870 Out of stock	Grooved ball bearing 609-2Z	£12.84 £10.70
4	ST9455 621 0750 In stock	Circlip 9x1	£0.58 £0.48
5	ST9456 621 2660 In stock	Circlip 24x1.2	£1.01 £0.84
6	ST4226 641 6500 In stock	Plug screw	£2.59 £2.16
7	ST4243 640 2503 In stock	Drive pinion	£29.75 £24.79
8	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.86 £0.72
9	ST4243 642 8201 Out of stock	Ring	£6.94 £5.78
10	ST4243 642 8200 Out of stock	Ring	£3.38 £2.82
11	ST4243 007 1300 In stock	Set of mounting hardware (Contains 12 - 17)	£18.52 £15.43
12	ST4243 642 1900 Out of stock	Cap	£2.64 £2.20
13	ST4243 951 9700 In stock	Screw	£16.31 £13.59
14	ST9486 648 1012 Out of stock	Cup spring 15x82x08	£0.60 £0.50
15	ST4243 642 7801 Out of stock	Washer	£2.39 £1.99
16	ST4243 642 9002 In stock	Screw sleeve	£1.92 £1.60
17	ST9022 373 0334 Out of stock	Spline screw IS-M3x7-12.9	£0.60 £0.50
18	ST4243 640 4506 Out of stock	Lock	£30.05 £25.04
19	ST4243 640 0537 Out of stock	Gear housing (145° 600 mm) (Contains 20 - 49)	£454.73 £378.94
20	ST4243 640 0517 Out of stock	Gear housing (145° 600 mm) (Contains 21 - 24)	£105.82 £88.18
21	ST4243 641 2602 Out of stock	Washer	£1.34 £1.12
22	ST4243 640 5100 In stock	Ball bearing	£10.46 £8.72
23	ST9456 621 2000 Out of stock	Circlips DIN472-19x1	£0.89 £0.74
24	ST0000 967 7299 Out of stock	Warning pictogram	£2.26 £1.88
25	ST4243 642 4601 In stock	Perforated strip	£4.14 £3.45
26	ST9075 478 3012 In stock	Pan head self-tapping screw IS-D4x12	£0.74 £0.62
27	ST0000 997 2020 Out of stock	Compression spring	£1.34 £1.12
28	ST4243 642 4500 Out of stock	Locking pin	£7.56 £6.30
29	ST9458 621 1421 Out of stock	Snap ring DIN7993-B10	£0.61 £0.51
30	ST4243 704 0900 Out of stock	Shaft	£2.26 £1.88
31	ST4243 708 6202 In stock	Notched quadrant	£7.51 £6.26
32	ST4243 182 4501 Out of stock	Torsion spring	£1.13 £0.94
33	ST9460 624 0320 Out of stock	E-clip 3.2	£0.48 £0.40
34	ST4243 700 2901 Out of stock	Adjusting lever	£15.97 £13.31
35	ST9075 478 4136 In stock	Pan head self-tapping screw IS-D5x20	£0.86 £0.72
36	ST4243 640 1600 In stock	Cam	£59.64 £49.70
37	ST9210 319 0900 In stock	Hexagon nut M6	£0.46 £0.38
38	ST4243 710 6004 In stock	Blade 600 mm / 24"	£127.97 £106.64
39	ST4243 649 0300 In stock	Gasket	£1.72 £1.43
40	ST4243 007 1004 Out of stock	Cover plate kit 600 mm	£50.29 £41.91
41	ST4243 640 5800 In stock	Gearbox cover (Contains 22 + 42)	£29.94 £24.95
42	ST0000 988 8600 In stock	Sleeve	£1.07 £0.89
44	ST4237 716 0400 In stock	Spline screw IS-M5x25	£1.80 £1.50
45	ST4237 958 0500 In stock	Washer	£1.28 £1.07
46	ST4243 717 3100 In stock	Cover plate	£32.11 £26.76
47	ST4242 641 4900 In stock	Sleeve 4.4 mm	£1.06 £0.88
48	ST9216 263 0700 In stock	Hexagon nut M5	£0.43 £0.36
49	ST4237 792 9006 Out of stock	Guide guard	£14.90 £12.42
50	ST0000 790 9201 Out of stock	Blade guard 600 mm / 24"	£13.10 £10.92
51	ST0781 120 1109 In stock	Multi-purpose grease (tube 80 g)	£12.92 £10.77
