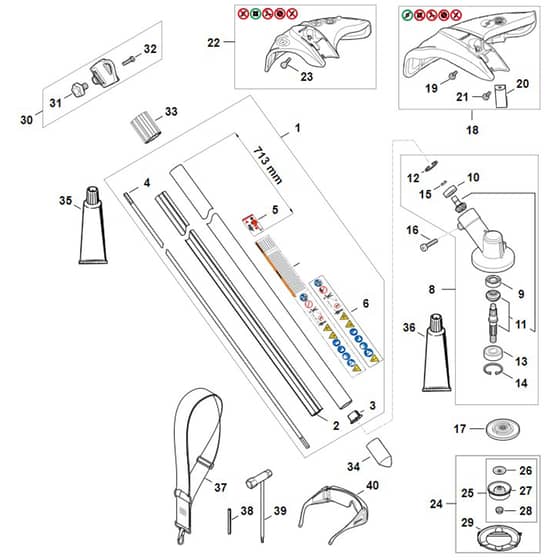

Stihl FSA80.0R - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Stihl FSA80.0R - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram
Stihl FSA80.0R - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Description

Stihl FSA80.0R - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Ref. Img. Part No. Details
  1 Drive tube assembly (Contains 2 - 6)
Drive tube assembly (Contains 2 - 6)
STFA08 710 7105 Out of stock
Drive tube assembly (Contains 2 - 6)
£95.16 £79.30

  2 Flexible liner 1455 mm
Flexible liner 1455 mm
ST4137 711 7300 Out of stock
Flexible liner 1455 mm
£12.77 £10.64

  3 Plug
Plug
ST4137 711 2101 In stock
Plug
£0.71 £0.59

  4 Drive shaft
Drive shaft
ST4137 711 3200 In stock
Drive shaft
Was £56.35 £46.96 Special Price £39.44 £32.87

  5 Warning pictogram
Warning pictogram
STFA08 967 7204 Out of stock
Warning pictogram
£2.35 £1.96

  6 Warning pictogram FSA EU
Warning pictogram FSA EU
STFA08 967 7200 Out of stock
Warning pictogram FSA EU
£2.35 £1.96

  8 Gearhead (Contains 9 - 15)
Gearhead (Contains 9 - 15)
ST4144 640 0100 Out of stock
Gearhead (Contains 9 - 15)
£166.92 £139.10

  9 Grooved ball bearing 629
Grooved ball bearing 629
ST9503 003 0062 Out of stock
Grooved ball bearing 629
£13.08 £10.90

  10 Grooved ball bearing 609-2Z
Grooved ball bearing 609-2Z
ST9503 003 9848 Out of stock
Grooved ball bearing 609-2Z
£13.08 £10.90

  11 Set of pinions
Set of pinions
ST4144 640 7300 Out of stock
Set of pinions
£60.48 £50.40

  12 Circlip 24x1.2
Circlip 24x1.2
ST9456 621 2660 In stock
Circlip 24x1.2
£1.15 £0.96

  13 Grooved ball bearing 6201-2RS
Grooved ball bearing 6201-2RS
ST9503 003 6440 In stock
Grooved ball bearing 6201-2RS
£4.60 £3.83

  14 Circlips 32x12
Circlips 32x12
ST9456 621 3600 In stock
Circlips 32x12
£1.18 £0.98

  15 Circlip 9x1
Circlip 9x1
ST9455 621 0750 In stock
Circlip 9x1
£0.76 £0.63

  16 Pan head self-tapping screw IS-D6x28
Pan head self-tapping screw IS-D6x28
ST9075 478 4712 Out of stock
Pan head self-tapping screw IS-D6x28
£1.15 £0.96

  17 Thrust plate
Thrust plate
ST4137 710 3800 In stock
Thrust plate
£17.48 £14.57

  18 Deflector Ø 380 mm (Contains 19 - 21)
Deflector Ø 380 mm (Contains 19 - 21)
ST4144 710 8127 Out of stock
Deflector Ø 380 mm (Contains 19 - 21)
£33.48 £27.90

  19 Screw IS-M5x17
Screw IS-M5x17
ST9022 319 0981 Out of stock
Screw IS-M5x17
£1.00 £0.83

  20 Blade
Blade
ST4133 713 4110 In stock
Blade
£4.72 £3.93

  21 Pan head screw IS P6x14
Pan head screw IS P6x14
ST9074 478 4405 Out of stock
Pan head screw IS P6x14
£1.00 £0.83

  22 Deflector (Contains 23)
Deflector (Contains 23)
ST4144 710 8116 Out of stock
Deflector (Contains 23)
£16.09 £13.41

  24 Upgrade Kit Grass cutting blade GSB 250-32 (Contains 25 + 26)
Upgrade Kit Grass cutting blade GSB 250-32 (Contains 25 + 26)
ST4001 007 1003 Out of stock
Upgrade Kit Grass cutting blade GSB 250-32 (Contains 25 + 26)
£89.64 £74.70

  25 Transport guard Ø 260
Transport guard Ø 260
ST4119 790 3906 Out of stock
Transport guard Ø 260
£32.20 £26.83

  26 FS tool parts kit GC BC WC
FS tool parts kit GC BC WC
ST4001 007 4400 In stock
FS tool parts kit GC BC WC
£14.88 £12.40

  27 Thrust washer
Thrust washer
ST4130 713 1600 In stock
Thrust washer
£4.64 £3.87

  28 Rider plate
Rider plate
ST4126 713 3100 Out of stock
Rider plate
£9.85 £8.21

  29 Collar nut M10x1 l/h thread
Collar nut M10x1 l/h thread
ST4126 642 7600 In stock
Collar nut M10x1 l/h thread
£5.78 £4.82

  30 Carrying ring (Contains 28 + 29)
Carrying ring (Contains 28 + 29)
ST0000 790 8807 Out of stock
Carrying ring (Contains 28 + 29)
£14.47 £12.06

  32 Hexagon head screw M5x20
Hexagon head screw M5x20
ST9008 319 1020 Out of stock
Hexagon head screw M5x20
£1.00 £0.83

  33 Sleeve
Sleeve
ST0000 711 2503 Out of stock
Sleeve
£3.08 £2.57

  34 Cap
Cap
ST4133 717 2000 In stock
Cap
£2.15 £1.79

  35 Multipurpose grease 225 g
Multipurpose grease 225 g
ST0781 120 1110 In stock
Multipurpose grease 225 g
£21.85 £18.21

  35 Multi-purpose grease (tube 80 g)
Multi-purpose grease (tube 80 g)
ST0781 120 1109 In stock
Multi-purpose grease (tube 80 g)
£9.60 £8.00

  36 Gear lubricant 225 g
Gear lubricant 225 g
ST0781 120 1118 In stock
Gear lubricant 225 g
£24.10 £20.08

  36 Gearbox grease (80g tube)
Gearbox grease (80g tube)
ST0781 120 1117 In stock
Gearbox grease (80g tube)
£9.62 £8.02

  37 Tragegurt
Tragegurt
ST4130 710 9000 Out of stock
Tragegurt
£11.82 £9.85

  38 Locking pin
Locking pin
ST4130 893 7800 In stock
Locking pin
£0.48 £0.40

  39 Combination wrench
Combination wrench
ST4119 890 3400 Out of stock
Combination wrench
£9.46 £7.88

  40 Safety glasses
Safety glasses
ST0000 884 0307 Out of stock
Safety glasses
£6.80 £5.67
