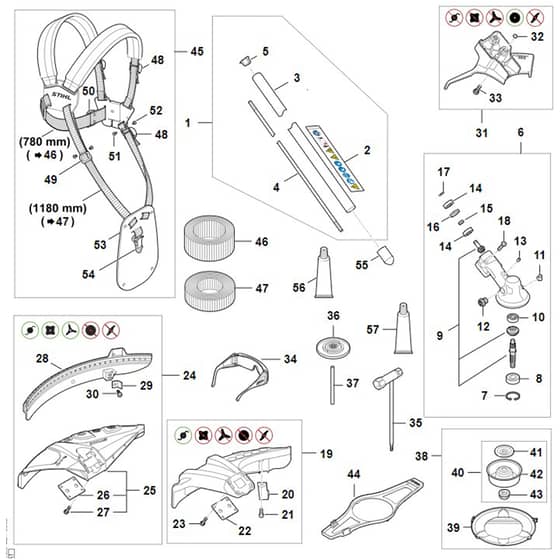

Stihl FSA200.0 - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Name: Stihl FSA200.0 - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram
SKU: fsa200_0_drive_tube_assembly_gear_head_deflector-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FSA200.0 - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Description

Stihl FSA200.0 - Drive Tube Assembly, Gear Head, Deflector - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STFA03 710 7101	Drive tube assembly 25.4 mm (Contains 2 - 5)	Out of stock	£96.84 £80.70
2	ST0000 967 7553	Warning note FSA EU	Out of stock	£2.35 £1.96
3	ST4134 711 7303	Flexible liner 1375 mm / 54 3/16"	Out of stock	£13.20 £11.00
4	ST4137 711 3200	Drive shaft	In stock	Was £56.35 £46.96 Special Price £39.44 £32.87
5	ST4137 711 2101	Plug	In stock	£0.83 £0.69
6	STFA03 640 0101	Gear head (Contains 7 - 18)	Out of stock	£194.88 £162.40
7	ST9456 621 3600	Circlips 32x12	In stock	£1.56 £1.30
8	ST9503 003 6440	Grooved ball bearing 6201-2RS	In stock	£4.60 £3.83
9	STFA03 640 7300	Set of pinions	Out of stock	£48.82 £40.68
10	ST9503 003 0060	Grooved ball bearing 629	Out of stock	£12.84 £10.70
11	ST4180 641 0800	Retaining plug	Out of stock	£7.43 £6.19
12	ST4119 713 6500	Plug screw	In stock	£3.35 £2.79
13	ST0000 953 1001	Stud	In stock	£2.54 £2.12
14	ST9503 003 9853	Grooved ball bearing 609-2Z	Out of stock	£13.46 £11.22
15	STFA03 642 8200	Ring	Out of stock	£5.82 £4.85
16	STFA03 642 8500	Spacer sleeve	Out of stock	£2.11 £1.76
17	ST9455 621 0750	Circlip 9x1	In stock	£0.76 £0.63
18	ST9022 341 1371	Spline screw IS-M6x30	Out of stock	£1.39 £1.16
19	STFA03 710 8100	Deflector Ø 450 mm (Contains 20 - 23)	Out of stock	£63.84 £53.20
20	ST4133 713 4110	Blade	In stock	£4.72 £3.93
21	ST9074 478 4405	Pan head screw IS P6x14	Out of stock	£1.13 £0.94
22	ST4180 716 3100	Backing plate	Out of stock	£10.19 £8.49
23	ST9022 373 1025	Spline screw IS-M5x23	Out of stock	£1.00 £0.83
24	ST4180 007 1028	Deflector kit (Contains 25 - 30)	Out of stock	£62.74 £52.28
25	ST4180 710 8106	Deflector (Contains 26 + 27)	Out of stock	£45.04 £37.53
28	ST4180 716 3200	Skirt	Out of stock	£9.49 £7.91
29	ST4180 713 4110	Blade	In stock	£2.52 £2.10
31	ST4180 710 8202	Limit stop Ø 200 mm (Contains 32 + 33)	Out of stock	£28.20 £23.50
32	ST0000 007 1300	Set of O-rings N 4x2-EPDM70	Out of stock	£0.64 £0.53
33	ST9022 371 1020	Pan head screw IS M5x20	In stock	£0.97 £0.81
34	ST0000 884 0307	Safety glasses	Out of stock	£8.56 £7.13
35	ST4180 890 3400	Combination wrench	Out of stock	£10.06 £8.38
36	ST4137 710 3800	Thrust plate	In stock	£18.43 £15.36
37	ST4130 893 7800	Locking pin	In stock	£0.48 £0.40
38	ST4001 007 1003	Upgrade Kit Grass cutting blade GSB 250-32 (Contains 39 - 43)	Out of stock	£89.64 £74.70
39	ST4119 790 3906	Transport guard Ø 260	Out of stock	£32.20 £26.83
40	ST4001 007 4400	FS tool parts kit GC BC WC (Contains 41 - 43)	In stock	£14.88 £12.40
41	ST4130 713 1600	Thrust washer	In stock	£4.64 £3.87
42	ST4126 713 3100	Rider plate	In stock	£10.37 £8.64
43	ST4126 642 7600	Collar nut M10x1 l/h thread	In stock	£5.78 £4.82
44	STFA01 717 3000	Transport guard	Out of stock	£34.80 £29.00
45	ST4119 710 9001	Full harness (Contains 46 - 54)	Out of stock	£63.50 £52.92
46	ST0000 930 2242	Webbing 38 mm x 5 m / 1.5x197"	Out of stock	£9.30 £7.75
47	ST0000 930 2241	Webbing 25 mm x 10 m / 1" x 33'	Out of stock	£13.84 £11.53
48	ST4203 792 7200	Slide	Out of stock	£3.41 £2.84
49	ST4119 718 6300	Slide	Out of stock	£1.15 £0.96
50	ST4119 718 6310	Slide	Out of stock	£1.26 £1.05
51	ST9408 021 4530	Rivet shank 4x8x6	Out of stock	£1.00 £0.83
52	ST9409 021 4420	Rivet head 4x8	Out of stock	£1.00 £0.83
53	ST4119 718 7400	Guard plate	Out of stock	£13.08 £10.90
54	ST4147 710 6900	Spring safety hook	Out of stock	£14.34 £11.95
55	ST4133 717 2000	Cap	In stock	£2.28 £1.90
56	ST0781 120 1110	Multipurpose grease 225 g	In stock	£23.06 £19.22
56	ST0781 120 1109	Multi-purpose grease (tube 80 g)	In stock	£9.60 £8.00
57	ST0781 120 1117	Gearbox grease (80g tube)	In stock	£9.62 £8.02
57	ST0781 120 1118	Gear lubricant 225 g	In stock	£24.10 £20.08
