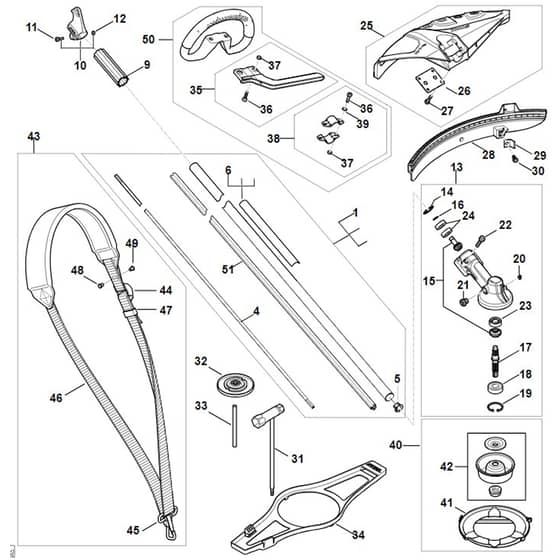

Stihl FSA135R - Drive Tube Assembly, Gear Head, Deflector Fsa 135 R - Parts Diagram

Description

Stihl FSA135R - Drive Tube Assembly, Gear Head, Deflector Fsa 135 R - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STFA01 710 7100	Drive tube assembly (Contains 4 - 6)	Out of stock	£102.84 £85.70
4	ST4137 711 3200	Drive shaft	In stock	Was £56.35 £46.96 Special Price £39.44 £32.87
5	ST4137 711 2101	Plug	Out of stock	£0.83 £0.69
6	ST0000 967 7339	Warning pictogram FSA	Out of stock	£2.29 £1.91
9	ST0000 711 2500	Sleeve	Out of stock	£8.56 £7.13
10	STFA01 790 8800	Carrying ring (Contains 45637)	Out of stock	£15.24 £12.70
11	ST9210 261 0700	Hexagon nut M5	Out of stock	£0.48 £0.40
12	ST9022 341 0980	Pan head screw IS M5x16	In stock	£0.97 £0.81
13	ST4180 640 0114	Gear head (Contains 14 - 27)	Out of stock	£187.08 £155.90
14	ST9456 621 2660	Circlip 24x1.2	In stock	£1.15 £0.96
15	ST4180 640 7301	Set of pinions	Out of stock	£44.64 £37.20
16	ST9455 621 0750	Circlip 9x1	In stock	£0.76 £0.63
17	ST4180 642 0602	Drive shaft	Out of stock	£42.14 £35.12
18	ST9503 003 6440	Grooved ball bearing 6201-2RS	In stock	£4.60 £3.83
19	ST9456 621 3600	Circlips 32x12	In stock	£1.34 £1.12
20	ST4180 641 0800	Retaining plug	Out of stock	£7.43 £6.19
21	ST4119 713 6500	Plug screw	In stock	£3.35 £2.79
22	ST9022 341 1371	Spline screw IS-M6x30	Out of stock	£1.39 £1.16
23	ST9503 003 0060	Grooved ball bearing 629	Out of stock	£12.84 £10.70
24	ST9503 003 9853	Grooved ball bearing 609-2Z	Out of stock	£13.46 £11.22
25	ST4180 710 8106	Deflector (Contains 26 + 27)	Out of stock	£45.04 £37.53
26	ST4180 716 3100	Backing plate	Out of stock	£10.19 £8.49
27	ST9022 373 1025	Spline screw IS-M5x23	Out of stock	£1.00 £0.83
28	ST4180 716 3200	Skirt	In stock	£9.49 £7.91
29	ST4180 713 4110	Blade	In stock	£2.52 £2.10
30	ST9074 478 4405	Pan head screw IS P6x14	Out of stock	£1.00 £0.83
31	ST4180 890 3400	Combination wrench	Out of stock	£10.06 £8.38
32	ST4137 710 3800	Thrust plate	In stock	£18.43 £15.36
33	ST4130 893 7800	Locking pin	In stock	£0.48 £0.40
34	STFA01 717 3000	Transport guard	Out of stock	£34.80 £29.00
35	ST4130 790 8450	Bow (Contains 36 + 37)	Out of stock	£17.47 £14.56
36	ST9022 341 1370	Pan head screw IS M6x30	Out of stock	£1.39 £1.16
37	ST9222 068 0900	Square nut M6	Out of stock	£0.50 £0.42
39	ST9291 021 0140	Washer 6.4	In stock	£0.40 £0.33
41	ST4119 790 3906	Transport guard Ø 260	Out of stock	£32.20 £26.83
42	ST4001 007 4400	FS tool parts kit GC BC WC	In stock	£14.88 £12.40
43	ST4119 710 9011	Harness (Contains 44 - 49)	Out of stock	£21.37 £17.81
44	ST4203 792 7200	Slide	Out of stock	£3.41 £2.84
45	ST4119 710 6900	Spring safety hook	Out of stock	£13.21 £11.01
46	ST0000 930 2241	Webbing 25 mm x 10 m / 1" x 33'	Out of stock	£13.84 £11.53
47	ST4119 718 6320	Slide	Out of stock	£1.00 £0.83
48	ST9408 021 4530	Rivet shank 4x8x6	Out of stock	£1.00 £0.83
49	ST9409 021 4420	Rivet head 4x8	Out of stock	£1.00 £0.83
50	ST4180 790 3408	Loop handle (Contains 35 - 39)	Out of stock	£24.16 £20.13
51	ST4137 711 7300	Flexible liner 1455 mm	Out of stock	£13.40 £11.17
