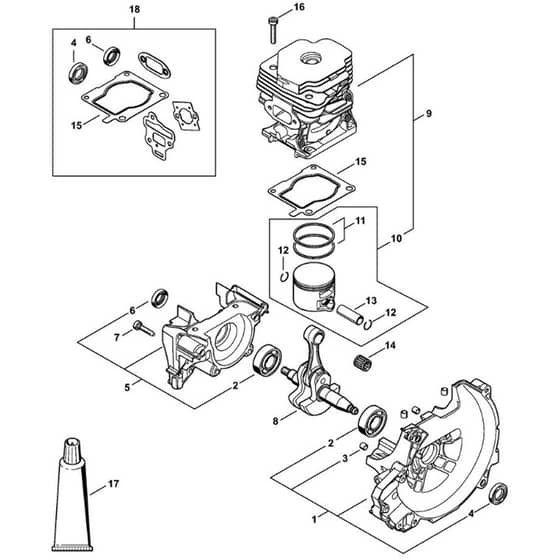

Stihl FS561.0 C-EM - Crankcase, Cylinder - Parts Diagram

Stihl FS561.0 C-EM - Crankcase, Cylinder - Parts Diagram
Stihl FS561.0 C-EM - Crankcase, Cylinder - Parts Diagram

Description

Stihl FS561.0 C-EM - Crankcase, Cylinder - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Crankcase fan side (Contains 2 - 4) ST4148 020 2602
Crankcase fan side (Contains 2 - 4)
 Out of stock
£166.92 £139.10

  2 Grooved ball bearing 6202 ST9503 003 0340
Grooved ball bearing 6202
 Out of stock
£16.99 £14.16

  3 Sleeve ST0000 988 8600
Sleeve
 In stock
£1.20 £1.00

  4 Oil seal 15x25x5 ST9639 003 1585
Oil seal 15x25x5
 Out of stock
£7.19 £5.99

  5 Crankcase (Contains 45445) ST4148 020 2902
Crankcase (Contains 45445)
 Out of stock
£152.88 £127.40

  6 Oil seal 12x22x5 ST9640 003 1195
Oil seal 12x22x5
 In stock
£5.78 £4.82

  7 Pan head self-tapping screw IS-D5x24 ST9075 478 4159
Pan head self-tapping screw IS-D5x24
 In stock
£0.86 £0.72

  8 Crankshaft ST4148 030 0402
Crankshaft
 Out of stock
£296.40 £247.00

  9 Cylinder with piston Ø 47 mm (Contains 10 - 13) ST4148 020 1201
Cylinder with piston Ø 47 mm (Contains 10 - 13)
 Out of stock
£321.48 £267.90

  10 Piston Ø 47 mm (Contains 11 - 13) ST4148 030 2003
Piston Ø 47 mm (Contains 11 - 13)
 Out of stock
£128.40 £107.00

  11 Piston ring Ø 47x12 mm ST1140 034 3008
Piston ring Ø 47x12 mm
 Out of stock
£11.42 £9.52

  12 Snap ring 11 ST9463 650 1100
Snap ring 11
 Out of stock
£0.76 £0.63

  13 Piston pin 11x7x32 ST4148 034 1500
Piston pin 11x7x32
 Out of stock
£8.06 £6.72

  14 Needle cage 11x14x15 ST9512 003 2347
Needle cage 11x14x15
 Out of stock
£8.41 £7.01

  15 Cylinder gasket ST4148 029 2300
Cylinder gasket
 Out of stock
£3.52 £2.93

  16 Spline screw IS-M5x28 ST9022 341 0900
Spline screw IS-M5x28
 Out of stock
£1.15 £0.96

  17 Sealant Dirko HT red ST0783 830 2000
Sealant Dirko HT red
 In stock
£18.34 £15.28

  18 Set of gaskets (Contains 42159) ST4148 007 1600
Set of gaskets (Contains 42159)
 Out of stock
£18.61 £15.51


Description

Stihl FS561.0 C-EM - Crankcase, Cylinder - Parts Diagram
