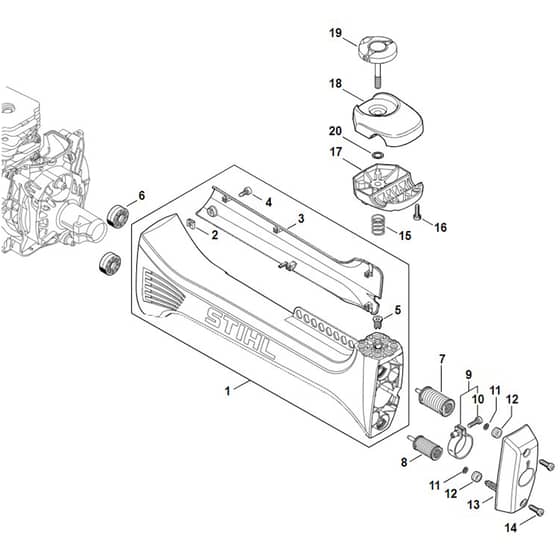

Stihl FS491 C-EM - Av System - Parts Diagram

Description

	Part No.	Details
1	ST4147 790 0909	AV housing (Contains 2 - 5)	Out of stock	£78.98 £65.82
2	ST9286 620 9821	Flat nut 4.8x3	Out of stock	£1.26 £1.05
3	ST4147 791 4300	Guard	Out of stock	£8.56 £7.13
4	ST9074 478 4125	Pan head self-tapping screw IS-5x14	In stock	£0.86 £0.72
5	ST9799 003 0500	Helicoil thread insert M8x16.4	Out of stock	£1.15 £0.96
6	ST4148 792 9303	Rubber buffer	Out of stock	£2.44 £2.03
7	ST4147 790 8301	AV-Spring	Out of stock	£15.97 £13.31
8	ST4147 790 8300	AV-Spring	Out of stock	£12.31 £10.26
9	ST4128 710 6700	Hose clamp (Contains 10)	Out of stock	£5.54 £4.62
10	ST9022 341 1010	Spline screw IS-M5x18	In stock	£0.86 £0.72
11	ST9417 003 7512	Push nut 4.0x9.6x1.8	In stock	£1.09 £0.91
12	ST4147 791 2801	Annular buffer	Out of stock	£3.78 £3.15
13	ST4147 791 7600	Support	Out of stock	£15.34 £12.78
14	ST9074 478 4435	Pan head screw IS P6x19	In stock	£0.86 £0.72
15	ST0000 997 1701	Compression spring	In stock	£1.51 £1.26
16	ST9022 341 0980	Pan head screw IS M5x16	In stock	£0.86 £0.72
17	ST4147 791 0901	Clamp	Out of stock	£14.34 £11.95
18	ST4147 791 0904	Clamp	Out of stock	£14.08 £11.73
19	ST4147 790 7503	Tommy screw	Out of stock	£14.34 £11.95
20	ST9646 945 0490	O-ring 7x1.5	Out of stock	£0.50 £0.42
