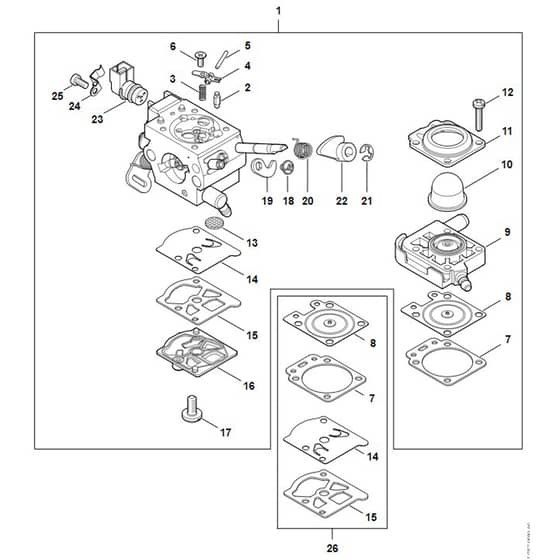

Stihl FS461 C-EM - Carburetor Wtf-12 - Parts Diagram

Stihl FS461 C-EM - Carburetor Wtf-12 - Parts Diagram
Stihl FS461 C-EM - Carburetor Wtf-12 - Parts Diagram

Description

Stihl FS461 C-EM - Carburetor Wtf-12 - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Carburetor WTF-12A (Contains 2 - 25) ST4147 120 0608
Carburetor WTF-12A (Contains 2 - 25)
 Out of stock
£200.76 £167.30

  2 Inlet needle ST4116 121 5100
Inlet needle
 Out of stock
£12.31 £10.26

  3 Spring ST4147 122 3001
Spring
 Out of stock
£2.65 £2.21

  4 Inlet control lever ST1121 121 5000
Inlet control lever
 Out of stock
£3.65 £3.04

  5 Spindle ST1113 121 9200
Spindle
 Out of stock
£1.50 £1.25

  6 Round head screw ST1121 122 7103
Round head screw
 Out of stock
£2.92 £2.43

  7 Gasket ST4133 129 0901
Gasket
 Out of stock
£2.52 £2.10

  8 Metering diaphragm ST4147 121 4700
Metering diaphragm
 Out of stock
£17.10 £14.25

  9 Flange ST4147 120 2201
Flange
 Out of stock
£39.12 £32.60

  10 Cap ST4133 121 2700
Cap
 Out of stock
£6.43 £5.36

  11 End cover ST4133 121 0801
End cover
 Out of stock
£18.68 £15.57

  12 Screw ST4147 122 7100
Screw
 Out of stock
£8.30 £6.92

  13 Strainer ST1114 121 7800
Strainer
 Out of stock
£3.78 £3.15

  14 Pump diaphragm ST1121 121 4801
Pump diaphragm
 Out of stock
£17.10 £14.25

  15 Gasket ST4147 129 0904
Gasket
 Out of stock
£2.52 £2.10

  16 Pump cover ST1143 120 2600
Pump cover
 Out of stock
£3.65 £3.04

  17 Screw ST1114 122 7100
Screw
 Out of stock
£2.92 £2.43

  18 Round head screw ST1121 122 7102
Round head screw
 Out of stock
£3.52 £2.93

  19 Throttle lever ST4147 121 3500
Throttle lever
 Out of stock
£7.43 £6.19

  20 Torsion spring ST4147 122 3200
Torsion spring
 Out of stock
£4.78 £3.98

  21 E-clip ST1117 122 9000
E-clip
 Out of stock
£2.26 £1.88

  22 Lever ST4147 121 6603
Lever
 Out of stock
£2.29 £1.91

  23 Solenoid valve ST0000 120 5111
Solenoid valve
 Out of stock
£39.30 £32.75

  24 Support ST0000 121 2300
Support
 Out of stock
£2.15 £1.79

  25 Screw ST0000 122 7102
Screw
 Out of stock
£1.90 £1.58

  26 Set of carburetor parts (Contains 7 + 8 + 14 + 15) ST4147 007 1700
Set of carburetor parts (Contains 7 + 8 + 14 + 15)
 Out of stock
£33.85 £28.21
