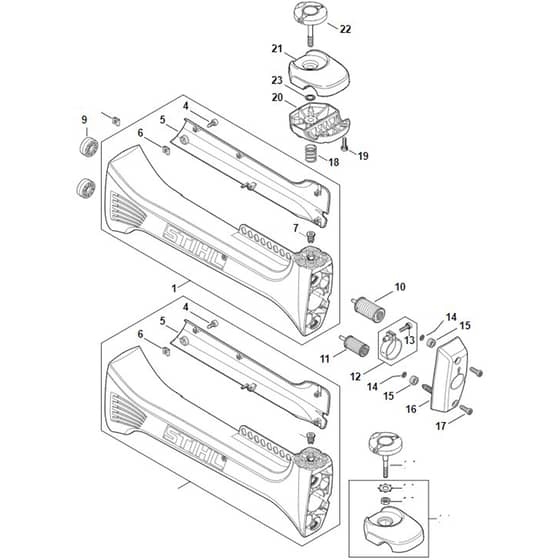

Stihl FS460 C-EM - Av System - Parts Diagram

Stihl FS460 C-EM - Av System - Parts Diagram
Stihl FS460 C-EM - Av System - Parts Diagram

Description

Stihl FS460 C-EM - Av System - Parts Diagram

Ref. Img. Part No. Details
  1 AV housing (Contains 4 - 7)
AV housing (Contains 4 - 7)
ST4147 790 0909 Out of stock
AV housing (Contains 4 - 7)
£78.98 £65.82

  2 AV housing (Contains 3 - 6)
AV housing (Contains 3 - 6)
ST4147 790 0903 Out of stock
AV housing (Contains 3 - 6)
£60.72 £50.60

  3 Helicoil thread insert M6x154
Helicoil thread insert M6x154
ST9799 003 0410 Out of stock
Helicoil thread insert M6x154
£0.89 £0.74

  4 Pan head self-tapping screw IS-5x14
Pan head self-tapping screw IS-5x14
ST9074 478 4125 In stock
Pan head self-tapping screw IS-5x14
£0.74 £0.62

  5 Guard
Guard
ST4147 791 4300 Out of stock
Guard
£7.86 £6.55

  6 Flat nut 4.8x3
Flat nut 4.8x3
ST9286 620 9821 Out of stock
Flat nut 4.8x3
£1.10 £0.92

  7 Helicoil thread insert M8x16.4
Helicoil thread insert M8x16.4
ST9799 003 0500 Out of stock
Helicoil thread insert M8x16.4
£1.07 £0.89

  8 Flat nut 4.2
Flat nut 4.2
ST9286 620 9810 Out of stock
Flat nut 4.2
£1.10 £0.92

  9 Rubber buffer
Rubber buffer
ST4147 792 9301 Out of stock
Rubber buffer
£2.32 £1.93

  10 AV-Spring
AV-Spring
ST4147 790 8301 Out of stock
AV-Spring
£15.25 £12.71

  11 AV-Spring
AV-Spring
ST4147 790 8300 Out of stock
AV-Spring
£11.71 £9.76

  12 Hose clamp (Contains 13)
Hose clamp (Contains 13)
ST4128 710 6700 Out of stock
Hose clamp (Contains 13)
£5.20 £4.33

  13 Spline screw IS-M5x18
Spline screw IS-M5x18
ST9022 341 1010 In stock
Spline screw IS-M5x18
£0.86 £0.72

  14 Push nut 4.0x9.6x1.8
Push nut 4.0x9.6x1.8
ST9417 003 7512 In stock
Push nut 4.0x9.6x1.8
£1.09 £0.91

  15 Annular buffer
Annular buffer
ST4147 791 2801 Out of stock
Annular buffer
£3.54 £2.95

  16 Support
Support
ST4147 791 7600 Out of stock
Support
£14.62 £12.18

  17 Pan head screw IS P6x19
Pan head screw IS P6x19
ST9074 478 4435 In stock
Pan head screw IS P6x19
£0.86 £0.72

  18 Compression spring
Compression spring
ST0000 997 1701 In stock
Compression spring
£1.51 £1.26

  19 Pan head screw IS M5x16
Pan head screw IS M5x16
ST9022 341 0980 In stock
Pan head screw IS M5x16
£0.86 £0.72

  20 Clamp
Clamp
ST4147 791 0901 Out of stock
Clamp
£13.67 £11.39

  21 Clamp
Clamp
ST4147 791 0904 Out of stock
Clamp
£13.45 £11.21

  22 Tommy screw
Tommy screw
ST4147 790 7503 Out of stock
Tommy screw
£13.01 £10.84

  23 O-ring 7x1.5
O-ring 7x1.5
ST9646 945 0490 Out of stock
O-ring 7x1.5
£0.48 £0.40

  25 Hexagon nut M8x1 l/h thread
Hexagon nut M8x1 l/h thread
ST9211 260 1150 In stock
Hexagon nut M8x1 l/h thread
£0.46 £0.38

  26 Shakeproof washer 24x0.5
Shakeproof washer 24x0.5
ST9451 621 2925 Out of stock
Shakeproof washer 24x0.5
£1.07 £0.89

  27 Tommy screw
Tommy screw
ST4147 790 7501 In stock
Tommy screw
£13.31 £11.09
