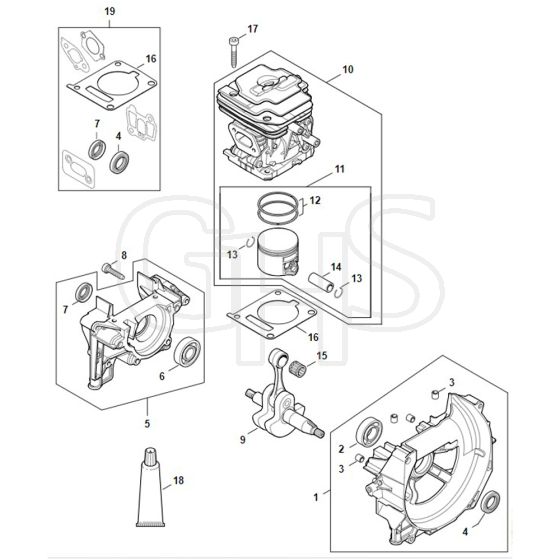

Stihl FS411 C-EM - Crankcase, Cylinder - Parts Diagram

Name: Stihl FS411 C-EM - Crankcase, Cylinder - Parts Diagram
SKU: fs411_c_em_crankcase_cylinder-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS411 C-EM - Crankcase, Cylinder - Parts Diagram

Description

Stihl FS411 C-EM - Crankcase, Cylinder - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4147 020 2609 Out of stock	Crankcase fan side (Contains 2 - 4)	£143.16 £119.30
2	ST9503 003 0310 Out of stock	Grooved ball bearing 6002	£13.70 £11.42
3	ST0000 988 8600 In stock	Sleeve	£1.20 £1.00
4	ST9639 003 1585 In stock	Oil seal 15x25x5	£7.19 £5.99
5	ST4147 020 2904 Out of stock	Crankcase (Contains 45479)	£134.28 £111.90
6	ST9503 003 0242 Out of stock	Grooved ball bearing 6201	£15.97 £13.31
7	ST9640 003 1195 In stock	Oil seal 12x22x5	£5.78 £4.82
8	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.86 £0.72
9	ST4147 030 0403 Out of stock	Crankshaft	£144.72 £120.60
10	ST4147 020 1207 Out of stock	Cylinder with piston Ø 42 mm (Contains 11 - 14)	£226.68 £188.90
11	ST4147 030 2011 Out of stock	Piston Ø 42 mm (Contains 12 - 14)	£96.84 £80.70
12	ST4147 034 3004 Out of stock	Piston ring Ø 42x1.2 mm	£9.30 £7.75
13	ST9463 650 1100 Out of stock	Snap ring 11	£0.76 £0.63
14	ST4147 034 1501 Out of stock	Piston pin 11x7x28	£8.06 £6.72
15	ST9512 003 2349 Out of stock	Needle cage 11x14x125	£7.93 £6.61
16	ST4147 029 2300 Out of stock	Cylinder gasket	£3.52 £2.93
17	ST9075 478 4167 In stock	Pan head self-tapping screw IS-D5x32	£1.15 £0.96
18	ST0783 830 2000 In stock	Sealant Dirko HT red	£18.34 £15.28
19	ST4147 007 1602 Out of stock	Set of gaskets (Contains 42555)	£17.62 £14.68
