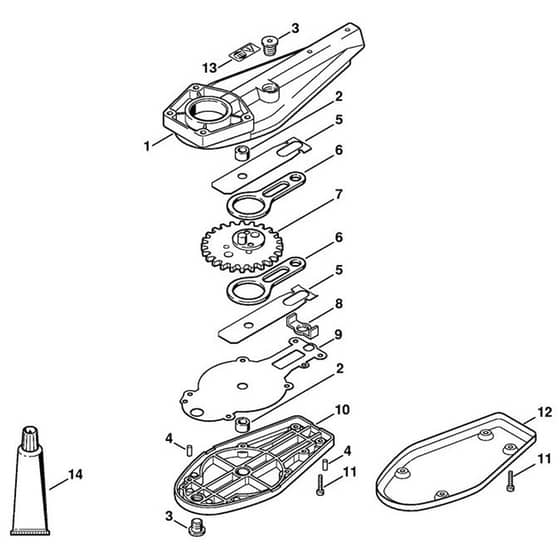

Stihl FH-KM 0-90 - Blade Drive Gear 0° - 90° - Parts Diagram

Stihl FH-KM 0-90 - Blade Drive Gear 0° - 90° - Parts Diagram
Stihl FH-KM 0-90 - Blade Drive Gear 0° - 90° - Parts Diagram

Description

Stihl FH-KM 0-90 - Blade Drive Gear 0° - 90° - Parts Diagram

Ref. Img. Part No. Details
  1 Gear housing (Contains 2 - 4)
Gear housing (Contains 2 - 4)
ST4230 640 0501 Out of stock
Gear housing (Contains 2 - 4)
£91.20 £76.00

  2 Needle cage 8x12x8
Needle cage 8x12x8
ST9513 003 0912 Out of stock
Needle cage 8x12x8
£7.67 £6.39

  3 Plug screw
Plug screw
ST4226 641 6500 In stock
Plug screw
£2.77 £2.31

  4 Cylindrical pin 4m6x12
Cylindrical pin 4m6x12
ST9381 003 2070 Out of stock
Cylindrical pin 4m6x12
£0.50 £0.42

  5 Thrust plate
Thrust plate
ST4230 642 4800 Out of stock
Thrust plate
£2.92 £2.43

  6 Connecting rod
Connecting rod
ST4230 642 6501 Out of stock
Connecting rod
£24.53 £20.44

  7 Gear wheel
Gear wheel
ST4230 640 7501 Out of stock
Gear wheel
£73.56 £61.30

  9 Gasket
Gasket
ST4230 649 0300 Out of stock
Gasket
£2.76 £2.30

  11 Pan head screw IS M4x16
Pan head screw IS M4x16
ST9022 313 0680 In stock
Pan head screw IS M4x16
£0.86 £0.72

  12 Guard plate
Guard plate
ST4230 641 6600 Out of stock
Guard plate
£37.97 £31.64

  13 Warning pictogram
Warning pictogram
ST0000 967 3730 Out of stock
Warning pictogram
£2.36 £1.97

  14 Multi-purpose grease (tube 80 g)
Multi-purpose grease (tube 80 g)
ST0781 120 1109 In stock
Multi-purpose grease (tube 80 g)
£9.60 £8.00
