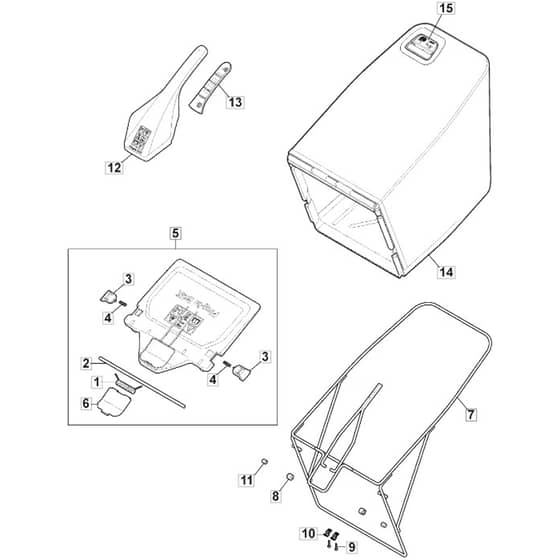

SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Grass Bag Diagram

Name: SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Grass Bag Diagram
SKU: sp555_v_294563038_m19_grass_bag-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2019-2021

Model Type - MP2 554 SV

Art.N - 294563038/M19

Engine Model - GCVx170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122450485/0 Out of stock	Spring	£2.15 £1.79
2	MO122517884/0 Out of stock	Pin	£4.82 £4.02
3	MO322109579/0 Out of stock	Support	£1.66 £1.38
4	MO122450482/0 Out of stock	Spring	£1.34 £1.12
5	MO381008155/1 Out of stock	Stone Guard	£30.55 £25.46
7	MO181006431/0 Out of stock	Textile Grasscatcher Frame	£59.83 £49.86
8	MO322109582/0 Out of stock	Protection	£2.04 £1.70
9	MO112728713/0 Out of stock	Screw	£1.34 £1.12
10	MO325774220/0 Out of stock	Bracket	£1.66 £1.38
11	MO322109581/0 Out of stock	Protection	£2.04 £1.70
12	MO322393757/0 Out of stock	Handle Red	£12.10 £10.08
13	MO322394545/0 Out of stock	Lower Handgrip Black	£3.95 £3.29
14	MO181102389/0 Out of stock	Fabric Box White with Mountfield Black Logo	£71.29 £59.41
15	MO322486424/0 Out of stock	Grasscatcher Full Indicator [Grey]	£1.91 £1.59
