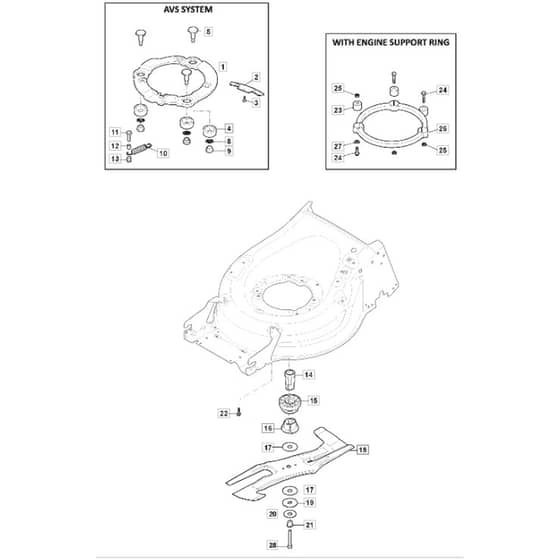

SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Blade Diagram

SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Blade Diagram
SP555 V - 2019-2021 - 294563038/M19 - Mountfield Rotary Mower Blade Diagram

Description

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2019-2021

Model Type - MP2 554 SV

Art.N - 294563038/M19

Engine Model - GCVx170 OHV Autochoke

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Flange MO322207226/1
Flange
 Out of stock
£32.16 £26.80

  2 Plate MO322551536/0
Plate
 Out of stock
£3.53 £2.94

  3 Screw MO112728210/0
Screw
 Out of stock
£1.36 £1.13

  4 Grommet MO322250015/1
Grommet
 In stock
£6.48 £5.40

  5 Pin MO122519816/0
Pin
 In stock
£11.52 £9.60

  8 Washer MO112543002/0
Washer
 Out of stock
£1.21 £1.01

  9 Nut MO112155000/0
Nut
 In stock
£1.63 £1.36

  10 Spring MO122450439/0
Spring
 Out of stock
£3.25 £2.71

  11 Screw MO112791400/0
Screw
 In stock
Was £1.34 £1.12 Special Price £0.89 £0.74

  12 Spacer MO122170846/0
Spacer
 Out of stock
£2.98 £2.48

  13 Nut MO112154510/0
Nut
 In stock
£1.63 £1.36

  14 Support MO122785494/0
Support
 In stock
£13.44 £11.20

  15 Pulley MO122601933/0
Pulley
 In stock
£53.88 £44.90

  16 Blade Hub MO122465656/0
Blade Hub
 In stock
£9.72 £8.10

  17 Washer MO322672110/1
Washer
 In stock
£1.75 £1.46

  18 Blade MO1111-9257-02
Blade
 Out of stock
£70.67 £58.89

  18 Blade MO181004417/0
Blade
 In stock
£58.32 £48.60

  19 Washer MO322672105/0
Washer
 In stock
£3.24 £2.70

  20 Cup Spring MO112508120/0
Cup Spring
 In stock
£3.24 £2.70

  21 Bush MO122041943/0
Bush
 In stock
£8.88 £7.40

  22 Screw To fix the Engine MO112735108/1
Screw To fix the Engine
 In stock
£2.04 £1.70

  23 Spacer MO122170835/0
Spacer
 Out of stock
£6.37 £5.31

  24 Screw MO112691700/0
Screw
 Out of stock
£1.75 £1.46

  25 Nut MO112154210/0
Nut
 In stock
£1.80 £1.50

  26 Protection MO322170964/0
Protection
 Out of stock
£4.07 £3.39

  27 Washer MO112521350/0
Washer
 Out of stock
£1.63 £1.36

  28 Hex-Head Screw 3.8 MO112736820/0
Hex-Head Screw 3.8" X 3"
 In stock
£2.84 £2.37


Description

Mountfield SP555 V Parts Diagram

Product Name - SP 555 V

Model Year - 2019-2021

Model Type - MP2 554 SV

Art.N - 294563038/M19

Engine Model - GCVx170 OHV Autochoke
