SP555 R V - 2022 - 294569033/M22 - Mountfield Rotary Mower Height Adjusting Diagram

Description

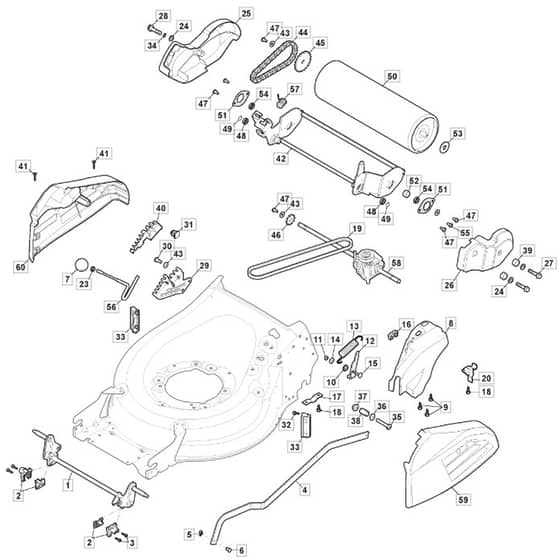

Mountfield SP555 R V Parts Diagram

Product Name - SP 555 R V

Model Year - 2022

Model Type - MP2 554 SV-R

Art.N - 294569033/M22

Engine Model - GCVx200 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302883/1 Out of stock	Front Wheel Axle	£31.15 £25.96
2	MO322785305/1 In stock	Support	£2.58 £2.15
3	MO112728697/0 In stock	Screw	£1.49 £1.24
4	MO322869721/1 Out of stock	Adjustment Rod	£39.28 £32.73
5	MO112000930/0 In stock	Benzing Ring	£1.49 £1.24
6	MO122519823/0 In stock	Pin	£2.17 £1.81
7	MO322399812/0 Out of stock	Knob	£3.64 £3.03
8	MO322055330/0 Out of stock	Cover	£9.96 £8.30
9	MO112728904/0 Out of stock	Screw	£1.49 £1.24
10	MO122517873/0 Out of stock	Pin	£2.84 £2.37
11	MO112154510/0 In stock	Nut	£1.49 £1.24
12	MO322778475/0 Out of stock	Bracket	£2.70 £2.25
13	MO122450480/0 Out of stock	Spring	£2.30 £1.92
15	MO112815270/0 Out of stock	Screw	£1.49 £1.24
16	MO322038407/0 Out of stock	Brass	£1.49 £1.24
17	MO322545147/0 Out of stock	Plate	£1.90 £1.58
19	MO135064394/0 In stock	Belt	£27.48 £22.90
20	MO322778491/0 Out of stock	Plate	£5.54 £4.62
23	MO112293200/0 In stock	Nut	£1.49 £1.24
25	MO322060272/2 Out of stock	Right Carter	£8.87 £7.39
26	MO322060274/1 Out of stock	Left Carter	£8.87 £7.39
27	MO112735592/0 Out of stock	Screw	£1.90 £1.58
28	MO112735594/0 Out of stock	Screw	£1.49 £1.24
29	MO322735605/0 Out of stock	Sector. Height Adjustment	£8.27 £6.89
30	MO9943-0516-16 In stock	Screw	£1.21 £1.01
31	MO118737864/0 Out of stock	Brass	£1.36 £1.13
32	MO112728706/0 In stock	Screw	£1.49 £1.24
33	MO322546053/0 Out of stock	Plate	£2.58 £2.15
34	MO119035002/0 Out of stock	Or Ring	£2.04 £1.70
35	MO112691200/0 Out of stock	Screw	£1.63 £1.36
36	MO122671651/0 In stock	Washer	£1.90 £1.58
37	MO112155015/0 Out of stock	Nut	£1.63 £1.36
38	MO122167840/0 Out of stock	Spacer	£1.49 £1.24
40	MO322570216/0 Out of stock	Plate	£5.28 £4.40
41	MO112728696/0 Out of stock	Screw	£1.49 £1.24
42	MO381302909/0 Out of stock	Rear Wheel Axle	£102.94 £85.78
43	MO112523040/0 In stock	Washer	£1.49 £1.24
44	MO1111-3562-01 In stock	Chain	£19.31 £16.09
45	MO1111-3424-01 In stock	Sprocket	£17.62 £14.68
46	MO1111-3423-01 Out of stock	Sprocket	£14.23 £11.86
47	MO112735662/1 Out of stock	Screw	£2.30 £1.92
48	MO119216035/0 Out of stock	Bearing	£3.38 £2.82
49	MO112608600/0 In stock	Seeger	£1.49 £1.24
50	MO381007405/0 Out of stock	Roller	£273.71 £228.09
51	MO322207325/0 Out of stock	Bearing Flange	£1.90 £1.58
52	MO122170820/0 Out of stock	Spacer	£17.06 £14.22
53	MO112523100/0 Out of stock	Washer	£1.90 £1.58
54	MO119216036/0 In stock	Bearing	£9.22 £7.68
55	MO112735664/0 In stock	Screw	£1.36 £1.13
56	MO322321557/0 Out of stock	Lever. Height Adjustment	£16.12 £13.43
57	MO122446194/0 Out of stock	Spring	£3.38 £2.82
58	MO181003121/0 Out of stock	Gear Box	£297.97 £248.31
59	MO322060298/0 Out of stock	Left Carter Black with Mountfield Logo	£12.94 £10.78
60	MO322060297/0 Out of stock	R.H Roller Cover Mp2 55 [Black] + Logo	£12.94 £10.78
