SP551 VLS - 2019-2020 - 294563543/M19 - Mountfield Rotary Mower Grass Bag Diagram

Name: SP551 VLS - 2019-2020 - 294563543/M19 - Mountfield Rotary Mower Grass Bag Diagram
SKU: sp551_vls_294563543_m19_grass_bag-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP551 VLS - 2019-2020 - 294563543/M19 - Mountfield Rotary Mower Grass Bag Diagram

Description

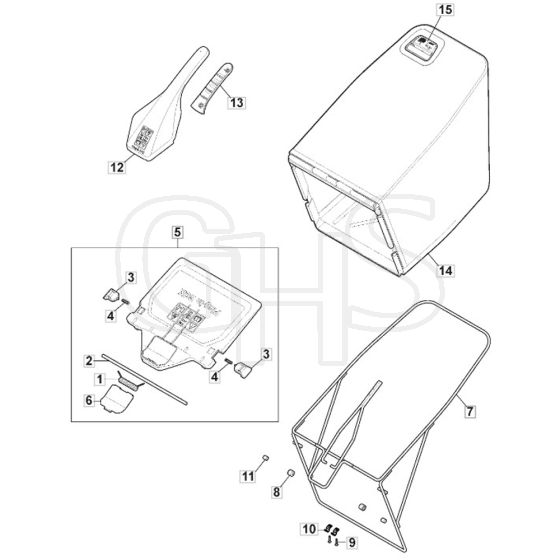

Mountfield SP551 VLS Parts Diagram

Product Name - SP 551 V LS

Model Year - 2019-2020

Model Type - MP2 554 SVE

Art.N - 294563543/M19

Engine Model - ST 170 LS OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122450485/0 Out of stock	Spring	£2.17 £1.81
2	MO122517884/0 Out of stock	Pin	£4.87 £4.06
3	MO322109579/0 Out of stock	Support	£1.49 £1.24
4	MO122450482/0 Out of stock	Spring	£1.36 £1.13
5	MO381008155/1 Out of stock	Stone Guard	£29.80 £24.83
7	MO181006431/0 Out of stock	Textile Grasscatcher Frame	£60.82 £50.68
8	MO322109582/0 Out of stock	Protection	£2.04 £1.70
9	MO112728713/0 Out of stock	Screw	£1.36 £1.13
10	MO325774220/0 Out of stock	Bracket	£1.49 £1.24
11	MO322109581/0 Out of stock	Protection	£2.04 £1.70
12	MO322393757/0 Out of stock	Handle Red	£12.34 £10.28
13	MO322394545/0 Out of stock	Lower Handgrip Black	£4.07 £3.39
14	MO181102389/0 Out of stock	Fabric Box White with Mountfield Black Logo	£74.47 £62.06
15	MO322486424/0 Out of stock	Grasscatcher Full Indicator [Grey]	£1.90 £1.58
