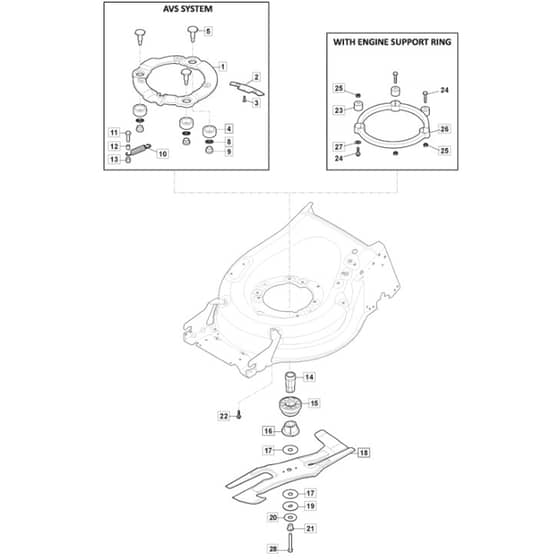

SP551 VLS - 2019-2020 - 294563543/M19 - Mountfield Rotary Mower Blade Diagram

Name: SP551 VLS - 2019-2020 - 294563543/M19 - Mountfield Rotary Mower Blade Diagram
SKU: sp551_vls_294563543_m19_blade-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP551 VLS - 2019-2020 - 294563543/M19 - Mountfield Rotary Mower Blade Diagram

Description

Mountfield SP551 VLS Parts Diagram

Product Name - SP 551 V LS

Model Year - 2019-2020

Model Type - MP2 554 SVE

Art.N - 294563543/M19

Engine Model - ST 170 LS OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322207226/1 In stock	Flange	£33.10 £27.58
2	MO322551536/0 Out of stock	Plate	£3.56 £2.97
3	MO112728210/0 Out of stock	Screw	£1.34 £1.12
4	MO322250015/1 In stock	Grommet	£6.77 £5.64
5	MO122519816/0 In stock	Pin	£12.05 £10.04
8	MO112543002/0 Out of stock	Washer	£1.20 £1.00
9	MO112155000/0 In stock	Nut	£1.48 £1.23
10	MO122450439/0 Out of stock	Spring	£3.22 £2.68
11	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
12	MO122170846/0 Out of stock	Spacer	£2.94 £2.45
13	MO112154510/0 In stock	Nut	£1.48 £1.23
14	MO122785493/0 Out of stock	Support	£12.98 £10.82
15	MO122601933/0 In stock	Pulley	£56.24 £46.87
16	MO122465656/0 In stock	Blade Hub	£10.51 £8.76
17	MO322672110/1 In stock	Washer	£1.52 £1.27
18	MO1111-9257-02 Out of stock	Blade	£72.31 £60.26
18	MO181004417/0 In stock	Blade	£63.66 £53.05
19	MO322672105/0 In stock	Washer	£3.40 £2.83
20	MO112508120/0 In stock	Cup Spring	£3.35 £2.79
21	MO122041943/0 In stock	Bush	£9.24 £7.70
22	MO112735108/1 In stock	Screw To fix the Engine	£2.00 £1.67
23	MO122170835/0 Out of stock	Spacer	£6.29 £5.24
25	MO112154210/0 In stock	Nut	£1.61 £1.34
26	MO322170964/0 Out of stock	Protection	£3.95 £3.29
27	MO112521350/0 In stock	Washer	£1.48 £1.23
28	MO112736820/0 In stock	Hex-Head Screw 3.8" X 3"	£2.81 £2.34
