SP550 TRI-CUT - 2003 - 12-9686-98 - Mountfield Rotary Mower Wheels Diagram

Description

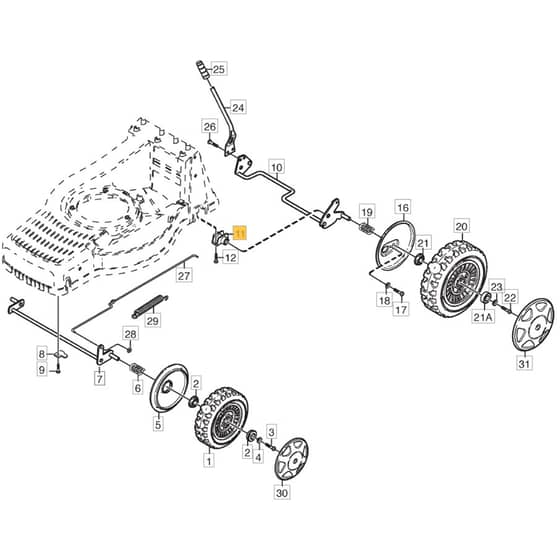

Mountfield SP550 TRI-CUT Parts Diagram

Product Name - SP 550 TRI-CUT

Model Year - 2003

Model Type -

Art.N - 12-9686-98

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1111-2784-01 In stock	Wheel	£16.76 £13.97
3	MO112735662/1 Out of stock	Screw	£2.17 £1.81
4	MO112521460/0 Out of stock	Flat Washer	£1.28 £1.07
6	MO122430210/0 Out of stock	Spring-Wheel Axle	£1.54 £1.28
9	MO112735664/0 In stock	Screw	£1.28 £1.07
10	MO381002823/0 Out of stock	Rear Axle	£48.37 £40.31
11	MO322785153/0 In stock	Bushing	£14.09 £11.74
17	MO112735661/0 Out of stock	Screw	£1.39 £1.16
18	MO112523040/0 In stock	Washer	£1.39 £1.16
19	MO122430215/0 Out of stock	Spring	£2.92 £2.43
20	MO1111-3026-01 Out of stock	Wheel Pos 21 - 21A incl.	£44.44 £37.03
21	MO122122201/0 Out of stock	Ball Bearing	£2.03 £1.69
21	MO119216038/0 Out of stock	21A Ball Bearing	£5.34 £4.45
25	MO322399808/0 Out of stock	Lever Knob	£2.17 £1.81
28	MO112604898/0 Out of stock	Starlock	£1.39 £1.16
29	MO122446181/0 Out of stock	Spring	£7.24 £6.03
30	MO322110312/0 Out of stock	Hub Cap 175 (Grey) 7-11 2	£8.77 £7.31
