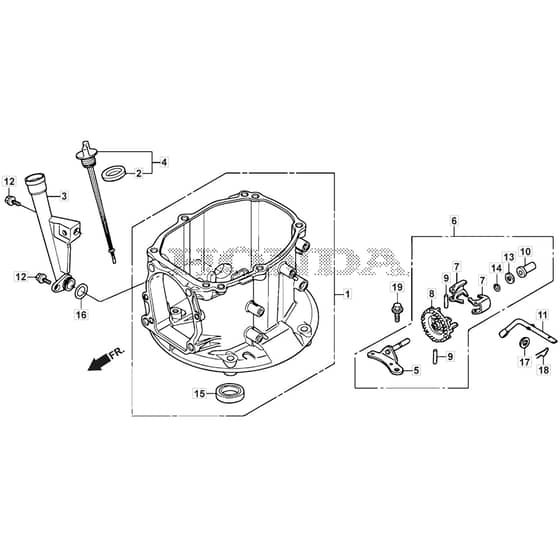

Mountfield SP535 HWV Parts Diagram

Product Name - SP 535 HW V

Model Year - 2019

Model Type - MP1 554 WSVQ

Art.N - 294557838/M19

Engine Model - GCVx170 OHV Autochoke

Ref. Img. Part No. Details
  1 Crankcase Assy.
Crankcase Assy.
HP11100-Z9L-415 Out of stock
Crankcase Assy.
£351.06 £292.55

  2 Packing. Oil Filler Cap
Packing. Oil Filler Cap
HP15625-ZE6-000 Out of stock
Packing. Oil Filler Cap
£3.16 £2.63

  3 Extension. Oil Filler
Extension. Oil Filler
HP15631-Z9L-000 Out of stock
Extension. Oil Filler
£19.73 £16.44

  4 Gauge Assy. Oil Level
Gauge Assy. Oil Level
HP15650-Z9L-000 Out of stock
Gauge Assy. Oil Level
£11.09 £9.24

  5 Shaft Comp. Governor Holder
Shaft Comp. Governor Holder
HP16508-ZM0-010 Out of stock
Shaft Comp. Governor Holder
£7.31 £6.09

  6 Governor Assy.
Governor Assy.
HP16510-ZM0-010 Out of stock
Governor Assy.
£23.15 £19.29

  7 Weight. Governor
Weight. Governor
HP16511-ZL8-000 Out of stock
Weight. Governor
£1.80 £1.50

  8 Holder. Governor Weight
Holder. Governor Weight
HP16512-ZM0-000 Out of stock
Holder. Governor Weight
£6.34 £5.28

  9 Pin. Governor Weight
Pin. Governor Weight
HP16513-ZE1-000 Out of stock
Pin. Governor Weight
£2.32 £1.93

  10 Slider. Governor
Slider. Governor
HP16531-Z1T-000 Out of stock
Slider. Governor
£4.73 £3.94

  11 Shaft. Governor Arm
Shaft. Governor Arm
HP16541-Z9L-000 Out of stock
Shaft. Governor Arm
£4.56 £3.80

  12 Bolt. Flange. 6X14 (Ct200)
Bolt. Flange. 6X14 (Ct200)
HP90013-ZL8-000 Out of stock
Bolt. Flange. 6X14 (Ct200)
£1.30 £1.08

  13 Washer. Thrust. 6mm
Washer. Thrust. 6mm
HP90451-Z1T-000 Out of stock
Washer. Thrust. 6mm
£2.08 £1.73

  14 Clip. Governor Holder
Clip. Governor Holder
HP90602-ZE1-000 Out of stock
Clip. Governor Holder
£3.91 £3.26

  15 Oil Seal. 28X41.25X6
Oil Seal. 28X41.25X6
HP91202-Z9L-003 In stock
Oil Seal. 28X41.25X6
£15.68 £13.07

  16 O-Ring. 19.1X2.2
O-Ring. 19.1X2.2
HP91301-Z9L-000 Out of stock
O-Ring. 19.1X2.2
£1.76 £1.47

  17 Washer. Plain. 6mm
Washer. Plain. 6mm
HP94101-06800 Out of stock
Washer. Plain. 6mm
£1.09 £0.91

  18 Pin. Lock. 8mm
Pin. Lock. 8mm
HP94251-08000 Out of stock
Pin. Lock. 8mm
£1.75 £1.46

  19 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP95701-0601408 Out of stock
Flange Bolt 6 X 14
£1.50 £1.25
