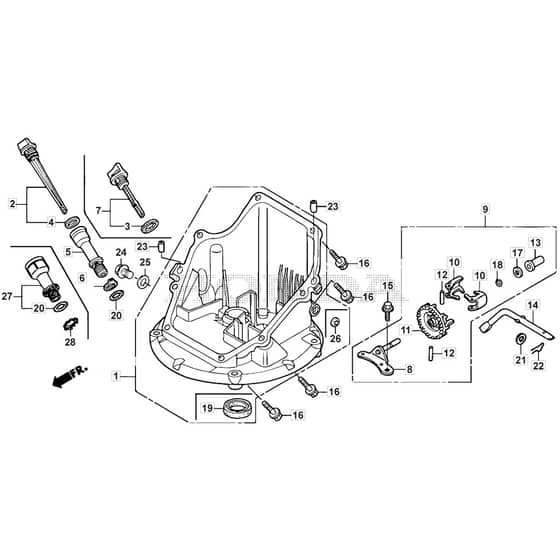

SP535 HW4S - 2018 - 29537838/M18 - Mountfield Rotary Mower Oil Pan Diagram

Description

Mountfield SP535 HW4S Parts Diagram

Product Name - SP 535 HW 4S

Model Year - 2018

Model Type - NTL 534 W TRQ 4S

Art.N - 29537838/M18

Engine Model - GCV 160 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP11300-ZM0-405 Out of stock	Pan Assy. Oil	£167.04 £139.20
2	HP15650-ZM0-801 In stock	Gauge Assy. Oil Level	Was £9.60 £8.00 Special Price £6.53 £5.44
4	HP15625-ZE6-000 Out of stock	Packing. Oil Filler Cap	£3.16 £2.63
5	HP15631-ZM0-000 Out of stock	Extension. Oil Filler	£9.11 £7.59
6	HP15639-ZM0-000 Out of stock	Washer. Extension Lock	£0.94 £0.78
8	HP16508-Z8B-003 Out of stock	Shaft Comp. Governor Holder	£13.16 £10.97
9	HP16510-Z8B-000 Out of stock	Governor Assy.	£21.07 £17.56
10	HP16511-ZL8-000 Out of stock	Weight. Governor	£1.80 £1.50
11	HP16512-ZM0-000 Out of stock	Holder. Governor Weight	£6.34 £5.28
12	HP16513-ZE1-000 Out of stock	Pin. Governor Weight	£2.32 £1.93
13	HP16531-ZE1-000 Out of stock	Slider. Governor	£4.96 £4.13
14	HP16541-Z8B-000 Out of stock	Shaft. Governor Arm	£2.33 £1.94
15	HP90014-952-000 Out of stock	Bolt. Flange. 6X14 (Ct200)	£3.95 £3.29
16	HP90121-952-000 Out of stock	Bolt. Flange. 6X25 (Ct200)	£3.07 £2.56
17	HP90451-ZE1-000 Out of stock	Washer. Thrust. 6mm	£2.16 £1.80
18	HP90602-ZE1-000 Out of stock	Clip. Governor Holder	£3.91 £3.26
19	HP91202-ZL8-003 Out of stock	Oil Seal. 28X41.25X6	£9.90 £8.25
20	HP91303-KF0-003 Out of stock	O-Ring. 14.8X2.4 (Arai)	£5.48 £4.57
21	HP94101-06800 Out of stock	Washer. Plain. 6mm	£1.09 £0.91
22	HP94251-08000 Out of stock	Pin. Lock. 8mm	£1.75 £1.46
23	HP90701-Z8B-000 Out of stock	Dowel Pin 8 X 20	£4.68 £3.90
