SP535 HW4S - 2011 - 299537038/M11 - Mountfield Rotary Mower Transmission Diagram

Description

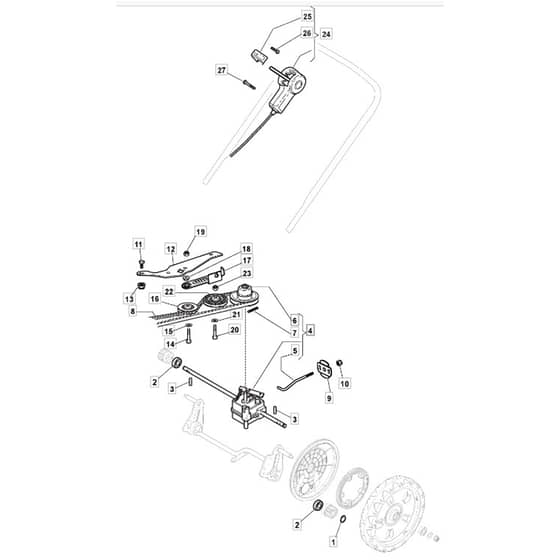

Mountfield SP535 HW4S Parts Diagram

Product Name - SP 535 HW 4S

Model Year - 2011

Model Type - NTL 534 W TR 4S

Art.N - 299537038/M11

Be the first to review this product

0 product questions

	Part No.	Details
2	MO119216035/0 In stock	Bearing	£3.35 £2.79
3	MO122753000/0 In stock	Pin	£1.48 £1.23
4	MO181003102/1 Out of stock	Gear Box Only for Models with "Flat" handle	£147.30 £122.75
4	MO181003096/3 Out of stock	Gear Box	£140.60 £117.17
5	MO122033285/0 Out of stock	Adjustment Rod	£6.56 £5.47
6	MO122601925/0 Out of stock	Pulley To 31-8-2013	£62.94 £52.45
6	MO122601932/0 Out of stock	Pulley From 01-9-2013	£54.64 £45.53
7	MO112645700/0 Out of stock	Elastic Pin	£1.48 £1.23
8	MO135064010/0 In stock	Belt	£13.99 £11.66
9	MO322675113/0 Out of stock	Washer	£1.66 £1.38
11	MO112791011/0 Out of stock	Screw	£1.34 £1.12
12	MO322806625/2 Out of stock	Support	£5.22 £4.35
13	MO112292102/0 In stock	Nut	£1.61 £1.34
14	MO112689500/0 Out of stock	Screw	£1.48 £1.23
16	MO122601915/0 In stock	Pulley	£20.35 £16.96
17	MO322806623/0 Out of stock	Pulley Support	£3.95 £3.29
18	MO122671656/0 Out of stock	Washer	£6.96 £5.80
20	MO112674700/0 Out of stock	Screw	£1.48 £1.23
21	MO112523050/0 In stock	Washer	£1.48 £1.23
22	MO122601914/0 In stock	Pulley	£20.48 £17.07
23	MO112154510/0 In stock	Nut	£1.48 £1.23
24	MO381007110/0 Out of stock	Speed Control Ass.Y	£42.96 £35.80
25	MO322399809/0 Out of stock	Knob	£1.66 £1.38
26	MO112728300/0 Out of stock	Screw	£1.48 £1.23
27	MO112728702/0 Out of stock	Self-Tap Screw Pt Torx Wn1451 K50 X 40	£1.48 £1.23
