SP535 HW4S - 2011 - 299537038/M11 - Mountfield Rotary Mower Deck Diagram

Name: SP535 HW4S - 2011 - 299537038/M11 - Mountfield Rotary Mower Deck Diagram
SKU: sp535_hw4s_299537038_m11_deck-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP535 HW4S - 2011 - 299537038/M11 - Mountfield Rotary Mower Deck Diagram

Description

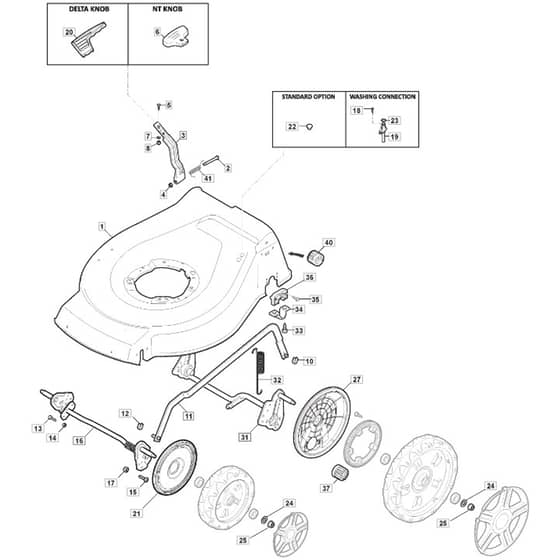

Mountfield SP535 HW4S Parts Diagram

Product Name - SP 535 HW 4S

Model Year - 2011

Model Type - NTL 534 W TR 4S

Art.N - 299537038/M11

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122534131/0 Out of stock	Pin	£1.48 £1.23
3	MO381003418/0 Out of stock	Lever. Height Adjustment Galvanized - White	£6.36 £5.30
5	MO112788512/0 Out of stock	Screw	£1.48 £1.23
6	MO322394503/0 Out of stock	Knob NT Knob	£1.79 £1.49
7	MO112521310/0 Out of stock	Washer	£1.34 £1.12
8	MO112150000/0 Out of stock	Nut	£1.34 £1.12
11	MO381002038/0 Out of stock	Rod	£36.92 £30.77
12	MO112436050/0 In stock	Plate	£1.74 £1.45
13	MO112727803/0 Out of stock	Screw	£1.48 £1.23
15	MO112727801/0 Out of stock	Screw	£1.48 £1.23
16	MO381302923/0 Out of stock	Front Wheel Axle	£38.20 £31.83
17	MO112154510/0 In stock	Nut	£1.48 £1.23
18	MO112728450/0 In stock	Screw From 01-9-2011	£1.48 £1.23
19	MO322034002/0 Out of stock	Washing Connection From 01-9-2011	£1.66 £1.38
20	MO322394522/0 Out of stock	Knob Delta Knob	£7.90 £6.58
21	MO322600145/0 Out of stock	Protection. Wheel As Optional	£1.66 £1.38
22	MO322820077/1 Out of stock	Cap	£1.66 £1.38
23	MO119035000/0 Out of stock	Or Ring	£4.82 £4.02
24	MO112521350/0 In stock	Washer	£1.48 £1.23
25	MO112155000/0 In stock	Nut	£1.48 £1.23
27	MO322600208/0 Out of stock	Protection. Wheel	£4.20 £3.50
31	MO381302837/1 Out of stock	Axle	£56.02 £46.68
32	MO122450460/0 Out of stock	Spring	£4.42 £3.68
34	MO322545152/0 In stock	Plate	£1.66 £1.38
35	MO112728697/0 In stock	Screw	£1.48 £1.23
36	MO322785304/1 Out of stock	Support	£2.29 £1.91
37	MO122570134/0 In stock	Left Pinion	£7.16 £5.97
40	MO122570133/0 In stock	Right Pinion	£7.16 £5.97
41	MO122446192/0 Out of stock	Spring	£2.00 £1.67
