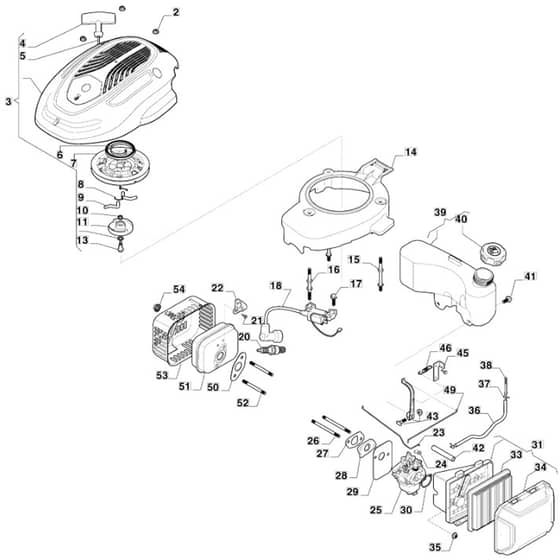

SP535 BW EL 4S - 2022 - 299537848/MTF - Mountfield Rotary Mower Engine Carb Tank Diagram

Description

Mountfield SP535 BW EL 4S Parts Diagram

Product Name - SP 535 BW EL 4S

Model Year - 2022

Model Type - NTL 534 W TRQ/E 4S

Art.N - 299537848/MTF

Be the first to review this product

0 product questions

	Part No.	Details
3	MO118551468/0	Starter Assy	Out of stock	£69.76 £58.13
4	MO118551619/0	Starter Handle	Out of stock	£8.66 £7.22
5	MO118550779/0	Starting Rope	Out of stock	£6.91 £5.76
6	MO118551621/0	Starter Spring	Out of stock	£9.76 £8.13
7	MO118551620/0	Starter Pulley	Out of stock	£14.89 £12.41
8	MO118551626/0	Spring	Out of stock	£2.30 £1.92
9	MO118551622/0	Ratchet. Starter	Out of stock	£2.84 £2.37
10	MO118551625/0	Spring	Out of stock	£2.98 £2.48
11	MO118551623/0	Cover	Out of stock	£7.58 £6.32
13	MO118551624/0	Stud	Out of stock	£4.07 £3.39
14	MO118551788/0	Blower Housing	Out of stock	£37.93 £31.61
17	MO112791500/0	Screw	Out of stock	£1.49 £1.24
18	MO118551474/0	Elettronic Coil	Out of stock	£48.16 £40.13
20	3381	Spark Plug (RC12YC)	In stock	£4.44 £3.70
21	MO112789000/0	Screw	Out of stock	£1.49 £1.24
22	MO118551456/0	Choke Control	Out of stock	£22.75 £18.96
23	MO118551459/0	Control Rod	Out of stock	£8.06 £6.72
24	MO118551352/0	Retainer	Out of stock	£3.53 £2.94
25	MO118552538/0	Carburettor	Out of stock	£70.94 £59.12
26	MO118552545/0	Stud Bolt	Out of stock	£12.80 £10.67
27	MO118552539/0	Gasket	Out of stock	£1.51 £1.26
28	MO118552540/0	Insulator. Carburettor	Out of stock	£2.44 £2.03
29	MO118550927/0	Gasket	Out of stock	£4.60 £3.83
30	MO118551124/0	Gasket	Out of stock	£2.35 £1.96
31	MO118551462/0	Air Cleaner Assy	Out of stock	£32.51 £27.09
33	MO118550257/0	Air Filter	In stock	£11.17 £9.31
34	MO118551463/0	Air Cleaner Cover	Out of stock	£23.16 £19.30
35	MO112292102/0	Nut	In stock	£1.63 £1.36
36	MO118551480/1	Fuel Pipe	Out of stock	£6.10 £5.08
37	MO118550918/0	Pipe Clip	In stock	£1.49 £1.24
38	MO118550314/0	Fuel Filter	Out of stock	£3.96 £3.30
39	MO118551453/0	Tank	Out of stock	£40.63 £33.86
40	MO118551455/0	Fuel Cap	Out of stock	£12.49 £10.41
41	MO112791400/0	Screw	In stock	Was £1.34 £1.12 Special Price £0.89 £0.74
42	MO118551479/0	Breather Fuel Pipe	Out of stock	£7.38 £6.15
43	MO118550933/0	Arm Governor	Out of stock	£5.96 £4.97
45	MO118552542/0	Bracket	Out of stock	£17.62 £14.68
46	MO118551458/0	Spring	Out of stock	£1.75 £1.46
49	MO118551457/0	Governor Link	Out of stock	£7.32 £6.10
50	MO118550898/0	Gasket. Muffler	Out of stock	£2.30 £1.92
51	MO118552543/0	Muffler	Out of stock	£24.83 £20.69
52	MO118552544/0	Stud Bolt	Out of stock	£8.41 £7.01
53	MO118551466/0	Muffler Guard	Out of stock	£22.90 £19.08
