SP534HW BBC - 2014 - 292157438/MFR - Mountfield Rotary Mower Deck Diagram

Description

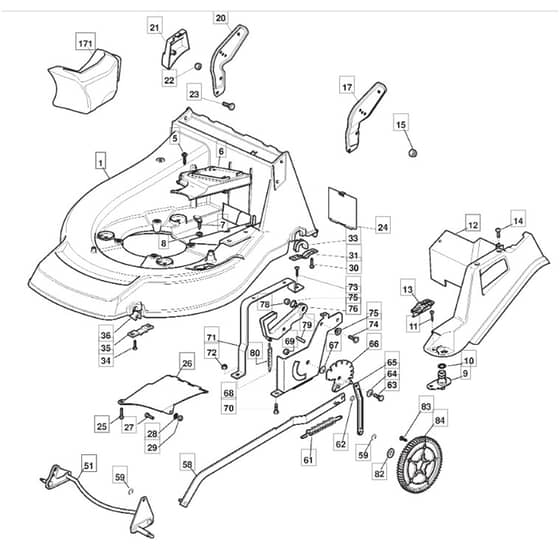

Mountfield SP534HW BBC Parts Diagram

Product Name - SP 534 HW BBC

Model Year - 2014

Model Type - NP 534 W TR

Art.N - 292157438/MFR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381003543/1 Out of stock	Red Deck From 01-9-2010 To 31-8-2013	£374.59 £312.16
5	MO112728522/0 Out of stock	Screw	£1.39 £1.16
6	MO322060200/1 Out of stock	Belt Protection Not For BBC Models	£3.94 £3.28
8	MO112523040/0 In stock	Washer	£1.39 £1.16
9	MO122034000/0 Out of stock	Washing Connection	£1.54 £1.28
10	MO119035000/0 Out of stock	Or Ring	£4.57 £3.81
11	MO112728519/0 Out of stock	Screw	£1.28 £1.07
12	MO322060144/3 Out of stock	Deck	£11.57 £9.64
13	MO122570200/0 Out of stock	Position Plate	£1.39 £1.16
14	MO112728520/0 Out of stock	Screw	£1.28 £1.07
17	MO322778397/1 Out of stock	Left Bracket	£12.06 £10.05
20	MO322778396/1 Out of stock	Right Bracket	£12.06 £10.05
21	MO122601001/0 Out of stock	Right Bracket Protection	£1.78 £1.48
24	MO122595352/0 Out of stock	Inspection Door	£2.03 £1.69
26	MO322108205/0 Out of stock	Conveyor To 31-8-2014	£9.55 £7.96
26	MO322108205/1 Out of stock	Conveyor From 01-9-2014	£9.20 £7.67
27	MO112789000/0 Out of stock	Screw	£1.39 £1.16
28	MO112523020/0 Out of stock	Washer	£1.39 £1.16
29	MO112154330/0 Out of stock	Nut	£1.39 £1.16
31	MO322545177/0 Out of stock	Plate	£2.54 £2.12
33	MO322038407/0 Out of stock	Brass	£1.39 £1.16
34	MO112731350/0 Out of stock	Screw	£1.39 £1.16
35	MO322545156/0 Out of stock	Plate	£1.28 £1.07
36	MO122038400/1 Out of stock	Brass	£1.66 £1.38
51	MO381302865/0 Out of stock	Axle. Front Wheels From 01-9-2013	£52.31 £43.59
51	MO381002865/1 Out of stock	Front Wheel Axle	£44.69 £37.24
58	MO381002023/0 Out of stock	Rod	£33.02 £27.52
59	MO112000930/0 In stock	Benzing Ring	£1.39 £1.16
61	MO122446187/0 Out of stock	Spring	£6.60 £5.50
62	MO112604899/0 In stock	Crown Fastener	£1.39 £1.16
63	MO122529662/0 Out of stock	Fulcrum Pin	£2.88 £2.40
64	MO322672151/0 Out of stock	Antifriction Washer	£1.66 £1.38
65	MO322033299/0 Out of stock	Rod	£6.19 £5.16
67	MO322672152/0 Out of stock	Antifriction Washer	£1.66 £1.38
68	MO322785109/0 Out of stock	Support. Height Adjustment	£5.98 £4.98
69	MO112155000/0 In stock	Nut	£1.39 £1.16
71	MO322785113/0 Out of stock	Handle Support	£2.92 £2.43
73	MO112729600/0 Out of stock	Screw	£1.39 £1.16
74	MO112793301/0 Out of stock	Screw	£1.39 £1.16
75	MO125038002/1 Out of stock	Bushing	£1.39 £1.16
76	MO322393611/2 Out of stock	Height Adjustment Handle From 01-9-2010	£4.06 £3.38
78	MO112293201/0 In stock	Nut	£1.54 £1.28
79	MO112622640/0 Out of stock	Pin	£1.39 £1.16
80	MO122446175/0 Out of stock	Spring	£2.03 £1.69
82	MO122675100/0 Out of stock	Washer	£1.66 £1.38
83	MO112728706/0 In stock	Screw	£1.39 £1.16
84	MO322120110/0 Out of stock	Wheels Crown	£17.96 £14.97
171	MO322140224/1 Out of stock	Mulching Plug [Np53]	£35.57 £29.64
