SP534HW BBC - 2012-2013 - 292157328/MFR - Mountfield Rotary Mower Deck Diagram

Description

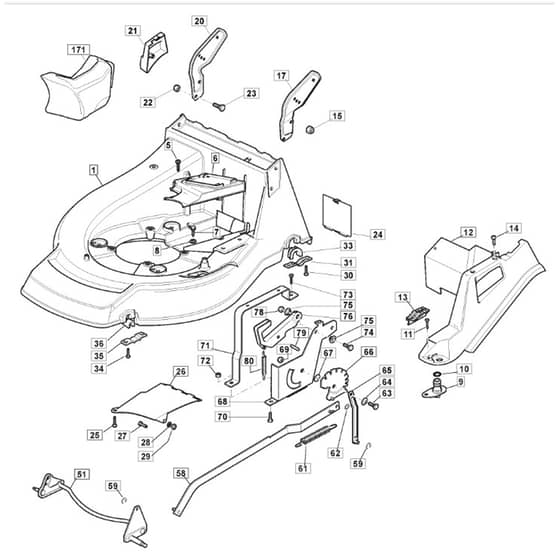

Mountfield SP534HW BBC Parts Diagram

Product Name - SP 534 HW BBC

Model Year - 2012-2013

Model Type - NP 534 TR

Art.N - 292157328/MFR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381003543/1 Out of stock	Red Deck From 01-9-2010 To 31-8-2013	£394.66 £328.88
5	MO112728522/0 Out of stock	Screw	£1.48 £1.23
6	MO322060200/1 Out of stock	Belt Protection	£4.20 £3.50
8	MO112523040/0 In stock	Washer	£1.48 £1.23
9	MO122034000/0 Out of stock	Washing Connection	£1.61 £1.34
10	MO119035000/0 Out of stock	Or Ring	£4.82 £4.02
11	MO112728519/0 Out of stock	Screw	£1.34 £1.12
12	MO322060144/3 Out of stock	Deck	£12.10 £10.08
13	MO122570200/0 Out of stock	Position Plate	£1.48 £1.23
14	MO112728520/0 Out of stock	Screw	£1.34 £1.12
17	MO322778397/1 Out of stock	Left Bracket	£12.60 £10.50
20	MO322778396/1 Out of stock	Right Bracket	£12.60 £10.50
21	MO122601001/0 Out of stock	Right Bracket Protection	£1.87 £1.56
24	MO122595352/0 Out of stock	Inspection Door	£2.15 £1.79
26	MO322108205/0 Out of stock	Conveyor To 31-8-2014	£9.55 £7.96
26	MO322108205/1 Out of stock	Conveyor From 01-9-2014	£9.55 £7.96
27	MO112789000/0 Out of stock	Screw	£1.48 £1.23
28	MO112523020/0 Out of stock	Washer	£1.48 £1.23
29	MO112154330/0 Out of stock	Nut	£1.48 £1.23
31	MO322545147/0 Out of stock	Plate	£1.91 £1.59
33	MO322038407/0 Out of stock	Brass	£1.66 £1.38
34	MO112731350/0 Out of stock	Screw	£1.48 £1.23
35	MO322545156/0 Out of stock	Plate	£1.40 £1.17
36	MO122038400/1 Out of stock	Brass	£1.74 £1.45
51	MO381002801/1 Out of stock	Front Wheel Axle To 31-8-2011	£38.20 £31.83
51	MO381002865/1 Out of stock	Front Wheel Axle From 01-9-2011 To 31-8-2012	£47.10 £39.25
51	MO381302865/0 Out of stock	Axle. Front Wheels From 01-9-2013	£39.47 £32.89
58	MO381002040/0 Out of stock	Rod. Height Adjustment From 01-9-2011	£31.82 £26.52
58	MO181001136/0 Out of stock	Rod. Height Adjustment - (Honda) To 31-8-2011	£34.81 £29.01
59	MO112000930/0 In stock	Benzing Ring	£1.48 £1.23
61	MO122446187/0 Out of stock	Spring	£6.96 £5.80
62	MO112604899/0 In stock	Crown Fastener	£1.48 £1.23
63	MO122529662/0 Out of stock	Fulcrum Pin	£3.05 £2.54
64	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
65	MO381001269/0 Out of stock	Rear Wheel Axle	£4.45 £3.71
66	MO381000479/2 Out of stock	Sector	£7.90 £6.58
67	MO322672152/0 Out of stock	Antifriction Washer	£1.52 £1.27
68	MO322785109/0 Out of stock	Support. Height Adjustment	£6.36 £5.30
69	MO112155000/0 In stock	Nut	£1.48 £1.23
71	MO322785113/0 Out of stock	Handle Support	£3.18 £2.65
73	MO112729600/0 Out of stock	Screw	£1.48 £1.23
74	MO112793301/0 Out of stock	Screw	£1.48 £1.23
75	MO125038002/1 Out of stock	Bushing	£1.48 £1.23
76	MO322393611/2 Out of stock	Height Adjustment Handle From 01-9-2009	£4.33 £3.61
78	MO112293201/0 In stock	Nut	£1.61 £1.34
79	MO112622640/1 Out of stock	Pin From 01-9-2018	£1.48 £1.23
79	MO112622640/0 Out of stock	Pin To 31-8-2018	£1.48 £1.23
80	MO122446175/0 Out of stock	Spring	£2.15 £1.79
171	MO322140224/1 Out of stock	Mulching Plug [Np53]	£38.20 £31.83
