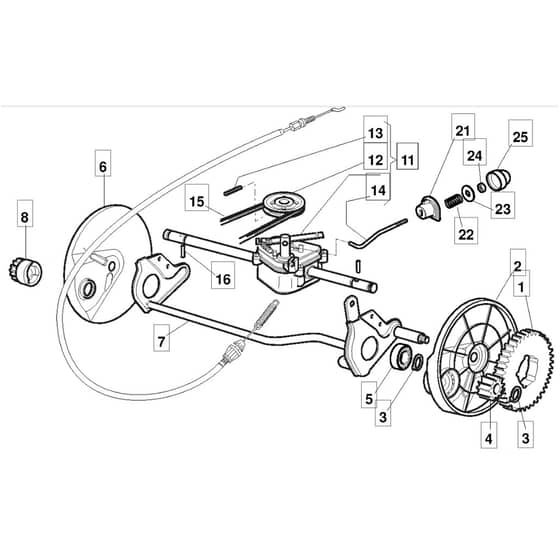

Mountfield SP534 Parts Diagram

Product Name - SP 534

Model Year - 2007

Model Type - ML 534 TR

Art.N - 290532148/BQ

Ref. Img. Part No. Details
  1 Ring Gear
Ring Gear
MO122120105/2 Out of stock
Ring Gear
£9.44 £7.87

  2 Left Wheel Protection
Left Wheel Protection
MO122600093/0 Out of stock
Left Wheel Protection
£3.22 £2.68

  3 Seeger
Seeger
MO112608600/0 In stock
Seeger
£1.48 £1.23

  4 Left Pinion
Left Pinion
MO122570120/1 In stock
Left Pinion
£7.03 £5.86

  5 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.35 £2.79

  6 Right Wheel Protection
Right Wheel Protection
MO122600092/0 Out of stock
Right Wheel Protection
£3.22 £2.68

  7 Rear Wheel Axle
Rear Wheel Axle
MO381000147/0 In stock
Rear Wheel Axle
Was £26.74 £22.28 Special Price £17.23 £14.36

  8 Right Pinion
Right Pinion
MO322570138/0 In stock
Right Pinion
£7.03 £5.86

  11 G.T. Gear Box (General Transmission) From 01-9-2003 To 31-8-2005
G.T. Gear Box (General Transmission) From 01-9-2003 To 31-8-2005
MO181003076/1 Out of stock
G.T. Gear Box (General Transmission) From 01-9-2003 To 31-8-2005
£115.16 £95.97

  11 Gear Box Bi.Ci.Di (Bi. Ci. Di.) From 01-9-2005
Gear Box Bi.Ci.Di (Bi. Ci. Di.) From 01-9-2005
MO181003081/1 Out of stock
Gear Box Bi.Ci.Di (Bi. Ci. Di.) From 01-9-2005
£137.95 £114.96

  11 Gear Box (General Transmission) To 31-8-2003
Gear Box (General Transmission) To 31-8-2003
MO181003059/2 Out of stock
Gear Box (General Transmission) To 31-8-2003
£140.60 £117.17

  11 Gear Box (General Transmission) From 01-9-2005
Gear Box (General Transmission) From 01-9-2005
MO181003092/0 In stock
Gear Box (General Transmission) From 01-9-2005
£107.80 £89.83

  12 Pulley
Pulley
MO122601909/0 In stock
Pulley
£5.35 £4.46

  13 Elastic Pin ø5X32
Elastic Pin ø5X32
MO112645705/0 Out of stock
Elastic Pin ø5X32
£1.48 £1.23

  14 Adjustment Rod (General Transmission)
Adjustment Rod (General Transmission)
MO122033283/0 In stock
Adjustment Rod (General Transmission)
£4.43 £3.69

  15 Belt
Belt
MO135063902/1 In stock
Belt
£9.44 £7.87

  16 Pin
Pin
MO122753000/0 In stock
Pin
£1.48 £1.23

  21 Bushing
Bushing
MO122041957/1 Out of stock
Bushing
£1.48 £1.23

  22 Spring
Spring
MO122450063/0 Out of stock
Spring
£1.48 £1.23

  23 Washer
Washer
MO322680009/0 Out of stock
Washer
£1.52 £1.27

  24 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  25 Hub Cover
Hub Cover
MO122110230/0 In stock
Hub Cover
£1.48 £1.23


Description

Mountfield SP534 Parts Diagram

Product Name - SP 534

Model Year - 2007

Model Type - ML 534 TR

Art.N - 290532148/BQ
