Description

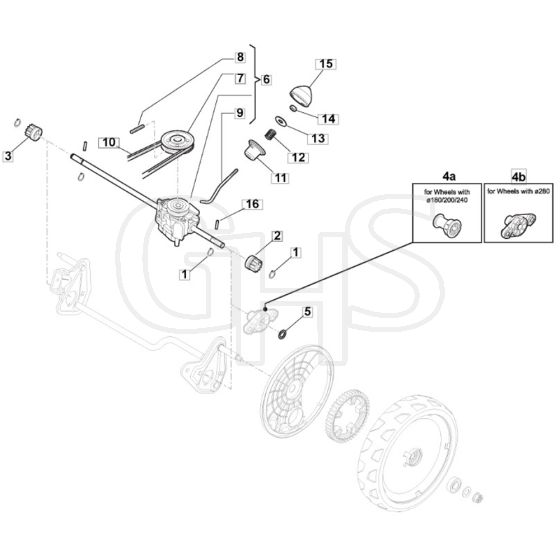

Mountfield SP533 LS Parts Diagram

Product Name - SP 533 LS

Model Year - 2019-2020

Model Type - CSC 534 WSE

Art.N - 295546548/MC

Engine Model - ST 170 LS OHV Autochoke

Ref. Img. Part No. Details
  1 Seeger
Seeger
MO112608600/0 In stock
Seeger
£1.48 £1.23

  2 Left Pinion Plastic
Left Pinion Plastic
MO122570120/1 In stock
Left Pinion Plastic
£7.03 £5.86

  2 Left Pinion
Left Pinion
MO122570134/0 In stock
Left Pinion
£7.16 £5.97

  3 Right Pinion
Right Pinion
MO122570133/0 In stock
Right Pinion
£7.16 £5.97

  4 4B Bushing For wheels ø280
4B Bushing For wheels ø280
MO322042067/0 In stock
4B Bushing For wheels ø280
£3.95 £3.29

  5 Washer
Washer
MO112521371/0 Out of stock
Washer
£1.48 £1.23

  6 Gear Box
Gear Box
MO181003092/0 Out of stock
Gear Box
£107.80 £89.83

  7 Pulley
Pulley
MO122601909/0 In stock
Pulley
£5.35 £4.46

  8 Elastic Pin ø5X32
Elastic Pin ø5X32
MO112645705/0 Out of stock
Elastic Pin ø5X32
£1.48 £1.23

  9 Adjustment Rod
Adjustment Rod
MO122033283/0 In stock
Adjustment Rod
£4.43 £3.69

  10 Belt
Belt
MO135064196/0 In stock
Belt
£9.31 £7.76

  11 Bushing
Bushing
MO122041957/1 Out of stock
Bushing
£1.48 £1.23

  12 Spring
Spring
MO122450063/0 Out of stock
Spring
£1.48 £1.23

  13 Washer
Washer
MO322680009/0 Out of stock
Washer
£1.52 £1.27

  14 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  15 Hub Cover
Hub Cover
MO122110230/0 In stock
Hub Cover
£1.48 £1.23

  16 Pin D.5.2 X 25.65
Pin D.5.2 X 25.65
MO122753000/0 In stock
Pin D.5.2 X 25.65
£1.48 £1.23


Description

Mountfield SP533 LS Parts Diagram

Product Name - SP 533 LS

Model Year - 2019-2020

Model Type - CSC 534 WSE

Art.N - 295546548/MC

Engine Model - ST 170 LS OHV Autochoke
