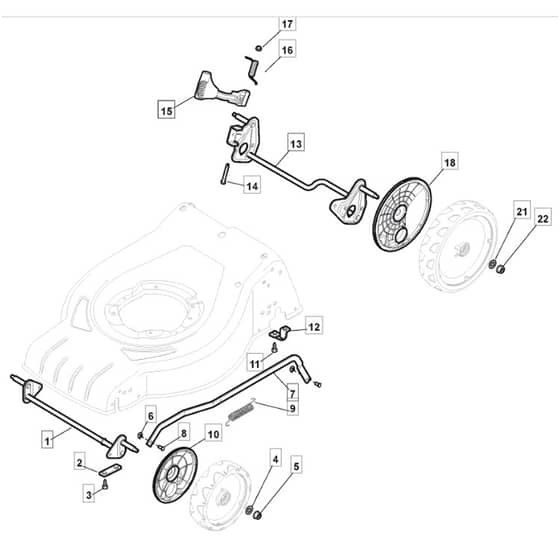

SP533 LS - 2019-2020 - 295546548/MC - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield SP533 LS Parts Diagram

Product Name - SP 533 LS

Model Year - 2019-2020

Model Type - CSC 534 WSE

Art.N - 295546548/MC

Engine Model - ST 170 LS OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302853/1 In stock	Front Wheel Axle	£31.82 £26.52
2	MO322545142/0 Out of stock	Plate	£1.66 £1.38
6	MO112436050/0 In stock	Plate	£1.74 £1.45
7	MO322869679/0 Out of stock	Rod. Height Adjustment To S.N 20BA2WBH070882	£24.19 £20.16
7	MO322869679/1 Out of stock	Rod. Height Adjustment From S.N 20BA2WBH074119	£24.19 £20.16
8	MO122519823/0 In stock	Pin	£2.15 £1.79
9	MO122446193/0 Out of stock	Spring	£4.55 £3.79
10	MO322600145/0 Out of stock	Protection. Wheel As Optional	£1.66 £1.38
11	MO112728698/0 In stock	Screw	£1.48 £1.23
12	MO322545152/0 In stock	Plate	£1.66 £1.38
13	MO381302849/1 Out of stock	Rear Wheel Axle	£48.37 £40.31
14	MO122534131/0 Out of stock	Pin	£1.48 £1.23
15	MO381003458/1 Out of stock	Wheels Rear Adj. Lever	£9.89 £8.24
15	MO381003459/1 Out of stock	Wheels Rear Adj. Lever with STIGA Logo Black Knob From S.N 20BA2WBH073719	£12.60 £10.50
15	MO381003459/0 Out of stock	Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718	£13.37 £11.14
16	MO122446192/0 Out of stock	Spring	£2.00 £1.67
17	MO112154510/0 In stock	Nut	£1.48 £1.23
18	MO322600240/0 Out of stock	Protection. Wheel	£5.09 £4.24
21	MO112521350/0 In stock	Washer	£1.48 £1.23
22	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.48 £1.23
