Description

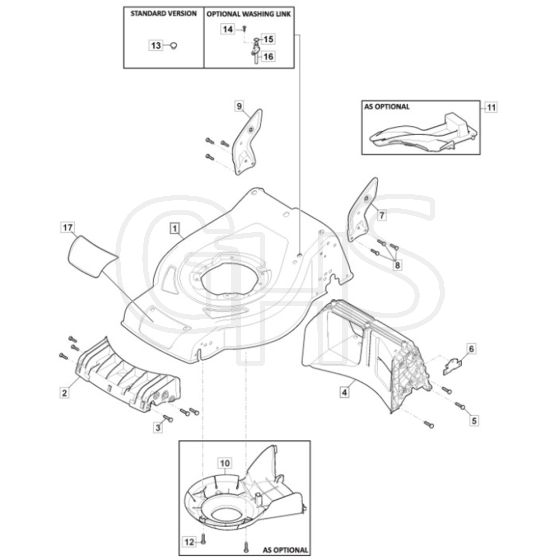

Mountfield SP533 LS Parts Diagram

Product Name - SP 533 LS

Model Year - 2019-2020

Model Type - CSC 534 WSE

Art.N - 295546548/MC

Engine Model - ST 170 LS OHV Autochoke

Ref. Img. Part No. Details
  1 Red Deck
Red Deck
MO381004940/1 Out of stock
Red Deck
£184.60 £153.83

  1 Black Deck To replace the old chassis is necessary to order also pos.17 To 31-8-2018
Black Deck To replace the old chassis is necessary to order also pos.17 To 31-8-2018
MO381004949/0 Out of stock
Black Deck To replace the old chassis is necessary to order also pos.17 To 31-8-2018
£190.97 £159.14

  1 Black Deck From 01-9-2018
Black Deck From 01-9-2018
MO381004949/1 Out of stock
Black Deck From 01-9-2018
£184.60 £153.83

  2 Rear Conveyor Assy
Rear Conveyor Assy
MO322108308/1 Out of stock
Rear Conveyor Assy
£13.24 £11.03

  4 Rear Conveyor Assy
Rear Conveyor Assy
MO322108392/0 Out of stock
Rear Conveyor Assy
£19.09 £15.91

  5 Screw
Screw
MO112728904/0 Out of stock
Screw
£1.48 £1.23

  6 Plate
Plate
MO322545213/0 Out of stock
Plate
£1.66 £1.38

  7 Left Bracket
Left Bracket
MO381005167/1 Out of stock
Left Bracket
£7.76 £6.47

  8 Screw
Screw
MO112727801/0 Out of stock
Screw
£1.48 £1.23

  9 Right Bracket
Right Bracket
MO381005165/1 Out of stock
Right Bracket
£7.26 £6.05

  10 Belt Protection As Optional
Belt Protection As Optional
MO322060250/1 In stock
Belt Protection As Optional
£10.19 £8.49

  11 Mulching Deflector As Optional
Mulching Deflector As Optional
MO322140244/1 In stock
Mulching Deflector As Optional
£15.41 £12.84

  12 Screw As Optional
Screw As Optional
MO112728903/0 In stock
Screw As Optional
£1.34 £1.12

  13 Cap
Cap
MO322820077/1 Out of stock
Cap
£1.66 £1.38

  14 Screw
Screw
MO112728450/0 In stock
Screw
£1.48 £1.23

  15 Or Ring
Or Ring
MO119035000/0 Out of stock
Or Ring
£4.82 £4.02

  16 Washing Connection
Washing Connection
MO322034002/0 Out of stock
Washing Connection
£1.66 £1.38

  17 Front Deck Insert Cs53 [Black]
Front Deck Insert Cs53 [Black]
MO322055606/0 Out of stock
Front Deck Insert Cs53 [Black]
£2.93 £2.44


Description

Mountfield SP533 LS Parts Diagram

Product Name - SP 533 LS

Model Year - 2019-2020

Model Type - CSC 534 WSE

Art.N - 295546548/MC

Engine Model - ST 170 LS OHV Autochoke
