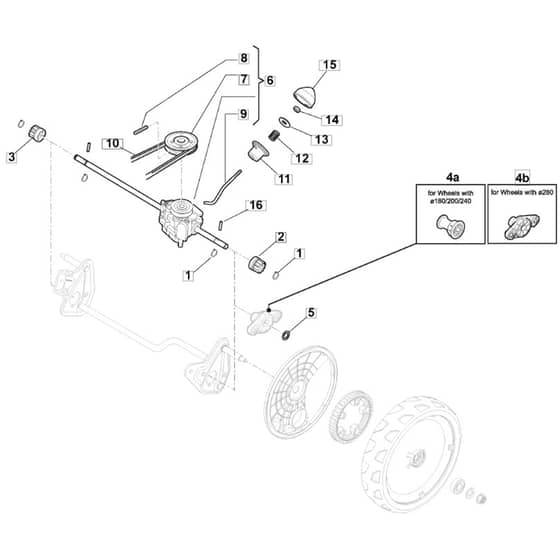

SP533 ES - 2012-2017 - 295546548/BQ - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield SP533 ES Parts Diagram

Product Name - SP 533 ES

Model Year - 2012-2017

Model Type - CSC 534 WSE

Art.N - 295546548/BQ

Engine Model - RM 55 ES

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion Plastic	£7.03 £5.86
2	MO122570134/0 In stock	Left Pinion	£7.16 £5.97
3	MO122570133/0 In stock	Right Pinion	£7.16 £5.97
4	MO322042067/0 In stock	4B Bushing For wheels ø280	£3.95 £3.29
5	MO112521371/0 Out of stock	Washer	£1.48 £1.23
6	MO181003092/0 Out of stock	Gear Box	£107.80 £89.83
7	MO122601909/0 In stock	Pulley	£5.35 £4.46
8	MO112645705/0 Out of stock	Elastic Pin ø5X32	£1.48 £1.23
9	MO122033283/0 In stock	Adjustment Rod	£4.43 £3.69
10	MO135064196/0 In stock	Belt	£9.31 £7.76
11	MO122041957/1 Out of stock	Bushing	£1.48 £1.23
12	MO122450063/0 Out of stock	Spring	£1.48 £1.23
13	MO322680009/0 Out of stock	Washer	£1.52 £1.27
14	MO112154510/0 In stock	Nut	£1.48 £1.23
15	MO122110230/0 In stock	Hub Cover	£1.48 £1.23
16	MO122753000/0 In stock	Pin D.5.2 X 25.65	£1.48 £1.23
