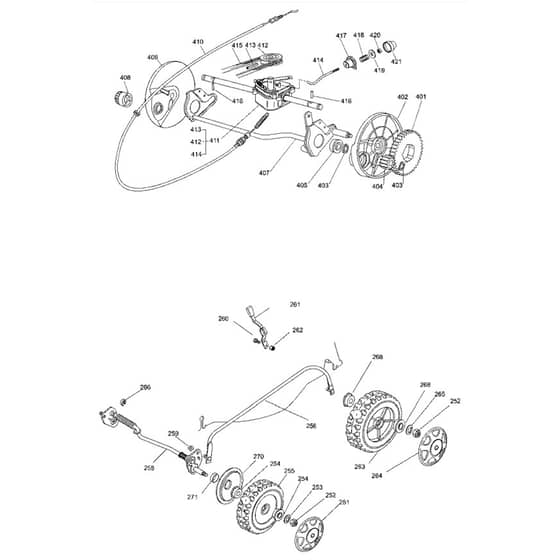

SP530 - 2004 - 23-5681-83 - Mountfield Rotary Mower Wheels Diagram

SP530 - 2004 - 23-5681-83 - Mountfield Rotary Mower Wheels Diagram
SP530 - 2004 - 23-5681-83 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield SP530 Parts Diagram

Product Name - SP 530

Model Year - 2004

Model Type -

Art.N - 23-5681-83

Ref. Img. Part No. Details
  251 Hub Cap Grey
Hub Cap Grey
MO322110312/0 Out of stock
Hub Cap Grey
£9.35 £7.79

  252 Lock Nut
Lock Nut
MO112155000/0 In stock
Lock Nut
£1.49 £1.24

  253 Washer
Washer
MO9699-0090-02 Out of stock
Washer
£1.90 £1.58

  253 Washer
Washer
MO112521350/0 In stock
Washer
£1.49 £1.24

  254 Bearing
Bearing
MO122122201/0 Out of stock
Bearing
£2.17 £1.81

  255 Wheel Pos 254 incl.
Wheel Pos 254 incl.
MO1111-2784-01 In stock
Wheel Pos 254 incl.
£17.88 £14.90

  255 Wheel
Wheel
MO381007344/0 Out of stock
Wheel
£17.88 £14.90

  256 Rod. Height Adjustment
Rod. Height Adjustment
MO381002021/0 Out of stock
Rod. Height Adjustment
£40.63 £33.86

  259 Lock Plate
Lock Plate
MO112436050/0 In stock
Lock Plate
£1.75 £1.46

  260 Screw
Screw
MO112789000/0 Out of stock
Screw
£1.49 £1.24

  261 Adjustment Lever
Adjustment Lever
MO381003279/2 Out of stock
Adjustment Lever
£31.15 £25.96

  262 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.49 £1.24

  263 Wheel
Wheel
MO381007360/0 Out of stock
Wheel
£15.98 £13.32

  264 Hub Cap Grey
Hub Cap Grey
MO322110521/0 Out of stock
Hub Cap Grey
£3.79 £3.16

  264 Hub Cap-Grey
Hub Cap-Grey
MO322110636/0 Out of stock
Hub Cap-Grey
£2.44 £2.03

  265 Elastic Washer
Elastic Washer
MO112369500/0 Out of stock
Elastic Washer
£1.36 £1.13

  266 Spacer
Spacer
MO122171002/0 Out of stock
Spacer
£1.49 £1.24

  268 Bearing
Bearing
MO122122206/0 In stock
Bearing
£1.75 £1.46

  271 Spacer
Spacer
MO122170800/0 Out of stock
Spacer
£1.49 £1.24

  401 Ring Gear
Ring Gear
MO122120105/2 Out of stock
Ring Gear
£9.55 £7.96

  402 Left Wheel Protection
Left Wheel Protection
MO122600093/0 Out of stock
Left Wheel Protection
£3.25 £2.71

  403 Circlip
Circlip
MO112608600/0 In stock
Circlip
£1.49 £1.24

  404 Left Pinion
Left Pinion
MO122570120/1 In stock
Left Pinion
£7.12 £5.93

  405 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.38 £2.82

  406 Right Wheel Protection
Right Wheel Protection
MO122600092/0 Out of stock
Right Wheel Protection
£3.25 £2.71

  407 Rear Wheel Axle
Rear Wheel Axle
MO381000147/0 Out of stock
Rear Wheel Axle
£26.41 £22.01

  408 Right Pinion
Right Pinion
MO322570138/0 In stock
Right Pinion
£7.12 £5.93

  410 Cable Rear Drive
Cable Rear Drive
MO381000672/0 In stock
Cable Rear Drive
£18.83 £15.69

  410 Clutch Cable
Clutch Cable
MO381000668/1 In stock
Clutch Cable
£20.17 £16.81

  411 Gear Box (Fr.Red.) Pos 412 - 414 incl.
Gear Box (Fr.Red.) Pos 412 - 414 incl.
MO181003076/1 Out of stock
Gear Box (Fr.Red.) Pos 412 - 414 incl.
£116.48 £97.07

  412 Pulley
Pulley
MO122601909/0 In stock
Pulley
£5.42 £4.52

  413 Pin
Pin
MO112645705/0 Out of stock
Pin
£1.49 £1.24

  414 Adjustment Rod
Adjustment Rod
MO122033283/0 In stock
Adjustment Rod
£4.48 £3.73

  415 Trapezoidal Belt
Trapezoidal Belt
MO135063800/0 In stock
Trapezoidal Belt
£8.90 £7.42

  415 Belt
Belt
MO135063902/1 In stock
Belt
£9.23 £7.69

  416 Pin
Pin
MO122753000/0 In stock
Pin
£1.49 £1.24

  417 Bushing
Bushing
MO122041957/1 Out of stock
Bushing
£1.49 £1.24

  418 Spring
Spring
MO122450063/0 Out of stock
Spring
£1.49 £1.24

  419 Washer
Washer
MO322680009/0 Out of stock
Washer
£1.75 £1.46

  420 Lock Nut
Lock Nut
MO112154510/0 In stock
Lock Nut
£1.49 £1.24

  421 Hub Cover
Hub Cover
MO122110230/0 In stock
Hub Cover
£1.49 £1.24


Description

Mountfield SP530 Parts Diagram

Product Name - SP 530

Model Year - 2004

Model Type -

Art.N - 23-5681-83
