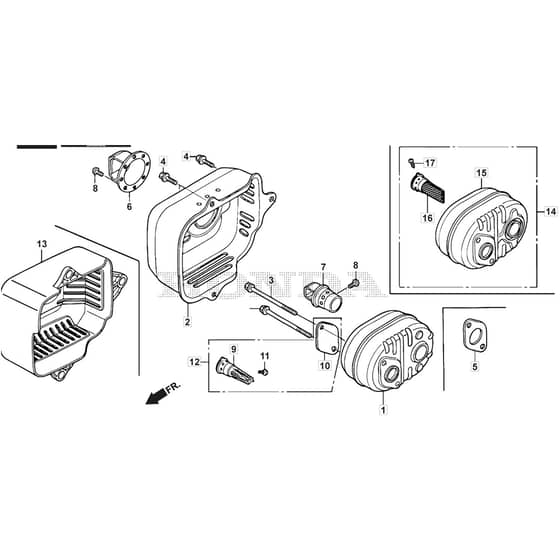

SP53 H - 2017-2019 - 295546038/WX - Mountfield Rotary Mower Exhaust Muffler Diagram

Name: SP53 H - 2017-2019 - 295546038/WX - Mountfield Rotary Mower Exhaust Muffler Diagram
SKU: sp53_h_295546038_wx_exhaust_muffler-group
Price: 1.41 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP53 H - 2017-2019 - 295546038/WX - Mountfield Rotary Mower Exhaust Muffler Diagram

Description

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2017-2019

Model Type - CSC 534 WS

Art.N - 295546038/WX

Engine Model - Honda GCV 160 Auotchoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP18310-Z0Y-010 Out of stock	Muffler Comp.	£28.32 £23.60
2	HP18321-Z0L-810 In stock	Protector. Muffler	£17.33 £14.44
3	HP90004-ZL8-000 Out of stock	Bolt. Flange. 6X79 (Ct200)	£2.40 £2.00
4	HP90013-883-000 Out of stock	Bolt. Flange. 6X12 (Ct200)	£4.63 £3.86
5	HP18381-ZL8-305 Out of stock	Gasket. Muffler	£7.62 £6.35
10	HP18356-ZL8-000 Out of stock	Plate. Arrester Number	£4.73 £3.94
12	HP06180-Z0J-000 Out of stock	Arrester Kit. Spark	£93.24 £77.70
14	HP18300-Z8A-000 Out of stock	Muffler Assy. (Arrester)	£19.13 £15.94
15	HP18310-Z8A-000 Out of stock	Muffler Comp.	£184.32 £153.60
16	HP18350-ZL8-000 Out of stock	Arrester Comp. Spark	£41.11 £34.26
17	HP90055-ZE1-000 Out of stock	Self Tapping Screw 4 X 6	£1.69 £1.41
