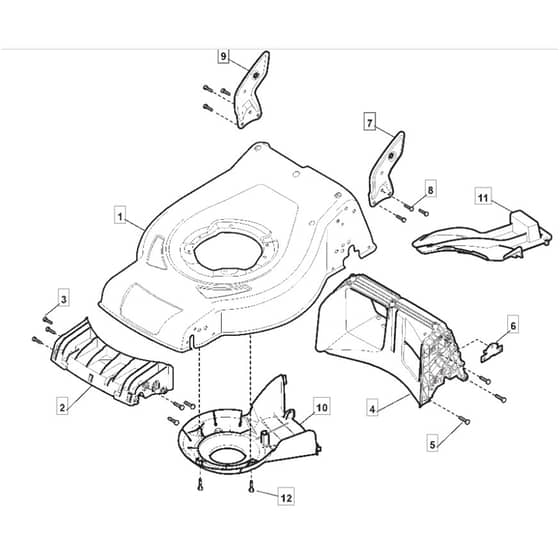

SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Deck Diagram

Name: SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Deck Diagram
SKU: sp53_h_295546038_sf_deck-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Deck Diagram

Description

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2015-2018

Model Type - CSC 534 WS

Art.N - 295546038/SF

Engine Model - Honda GCV 160 Auotchoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004949/0 Out of stock	Black Deck	£177.77 £148.14
2	MO322108308/0 Out of stock	Rear Conveyor Assy	£13.55 £11.29
4	MO322108392/0 Out of stock	Rear Conveyor Assy	£19.63 £16.36
5	MO112728904/0 Out of stock	Screw	£1.49 £1.24
6	MO322545213/0 Out of stock	Plate	£1.90 £1.58
7	MO381005167/1 Out of stock	Left Bracket Standard Black Knob From 01-9-2017	£7.86 £6.55
7	MO381005167/0 Out of stock	Left Bracket Standard Black Knob To 31-8-2017	£7.86 £6.55
7	MO381005183/1 Out of stock	Left Bracket	£9.76 £8.13
8	MO112727801/0 Out of stock	Screw	£1.49 £1.24
9	MO381005165/1 Out of stock	Right Bracket Standard Black Knob From 01-9-2017	£7.45 £6.21
9	MO381005181/1 Out of stock	Right Bracket	£9.35 £7.79
9	MO381005165/0 Out of stock	Right Bracket Standard Black Knob To 31-8-2017	£7.86 £6.55
10	MO322060250/1 In stock	Belt Protection	£10.43 £8.69
11	MO322140244/1 In stock	Mulching Plug	£15.72 £13.10
12	MO112728903/0 In stock	Self-Tap Screw 4.8 X 25 Use 112728531.0	£1.36 £1.13
