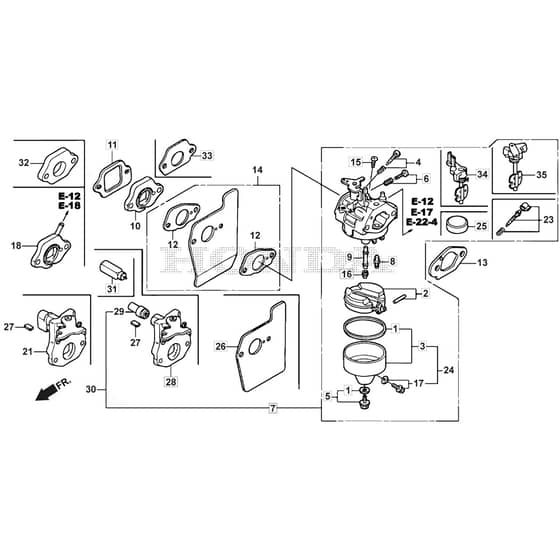

SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Carburettor Diagram

SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Carburettor Diagram
SP53 H - 2015-2018 - 295546038/SF - Mountfield Rotary Mower Carburettor Diagram

Description

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2015-2018

Model Type - CSC 534 WS

Art.N - 295546038/SF

Engine Model - Honda GCV 160 Auotchoke

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Packing Set HP16010-883-015
Packing Set
 In stock
£15.29 £12.74

  2 Float Set HP16013-ZL1-003
Float Set
 Out of stock
£38.29 £31.91

  3 Chamber Set. Float HP16015-Z0L-881
Chamber Set. Float
 Out of stock
£58.27 £48.56

  5 Screw Set HP16028-ZK7-S91
Screw Set
 Out of stock
£16.45 £13.71

  6 Screw Set (Throttle Stop) HP16029-ZG0-901
Screw Set (Throttle Stop)
 Out of stock
£15.04 £12.53

  7 Carburetor Assy. (Bb76F A) HP16100-Z0L-N21
Carburetor Assy. (Bb76F A)
 Out of stock
£130.44 £108.70

  7 Carburetor Assy. (Bb75G A) HP16100-Z8B-871
Carburetor Assy. (Bb75G A)
 Out of stock
£116.16 £96.80

  7 Carburetor Assy. (Bb76A A) HP16100-Z8B-901
Carburetor Assy. (Bb76A A)
 Out of stock
£127.08 £105.90

  8 Valve. Float HP16155-ZM0-013
Valve. Float
 Out of stock
£42.60 £35.50

  9 Nozzle. Main HP16166-Z8B-901
Nozzle. Main
 Out of stock
£44.57 £37.14

  9 Nozzle. Main HP16166-Z2C-003
Nozzle. Main
 Out of stock
£48.77 £40.64

  11 Packing. Insulator HP16212-ZL8-000
Packing. Insulator
 In stock
£3.56 £2.97

  15 Screw. Pan. 5X6 HP93500-050-060H
Screw. Pan. 5X6
 Out of stock
£2.35 £1.96

  16 Jet. Main. #60 HP99101-1240600
Jet. Main. #60
 Out of stock
£12.92 £10.77

  16 Jet. Main. #55 HP99101-1240550
Jet. Main. #55
 Out of stock
£12.50 £10.42

  16 Jet. Main. #62 HP99101-1240620
Jet. Main. #62
 Out of stock
£13.48 £11.23

  16 Jet. Main. #58 HP99101-1240580
Jet. Main. #58
 Out of stock
£10.13 £8.44

  16 Jet. Main. #65 HP99101-1240650
Jet. Main. #65
 Out of stock
£12.50 £10.42

  25 Cap. Choke Dust HP16148-Z1L-851
Cap. Choke Dust
 Out of stock
£6.30 £5.25

  26 Guide. Air HP19651-Z0L-000
Guide. Air
 In stock
£5.10 £4.25

  28 Control Assy. Choke HP16600-Z8B-900
Control Assy. Choke
 Out of stock
£79.08 £65.90

  28 Control Assy. Choke HP16600-Z8D-840
Control Assy. Choke
 Out of stock
£88.92 £74.10

  31 Thermowax Assy. HP16620-Z9L-003
Thermowax Assy.
 In stock
£44.98 £37.48

  33 Packing. Insulator HP16212-Z8B-900
Packing. Insulator
 Out of stock
£11.48 £9.57

  34 Choke Set Assy HP16044-Z8B-901
Choke Set Assy
 Out of stock
£71.04 £59.20


Description

Mountfield SP53 H Parts Diagram

Product Name - SP53 H

Model Year - 2015-2018

Model Type - CSC 534 WS

Art.N - 295546038/SF

Engine Model - Honda GCV 160 Auotchoke
