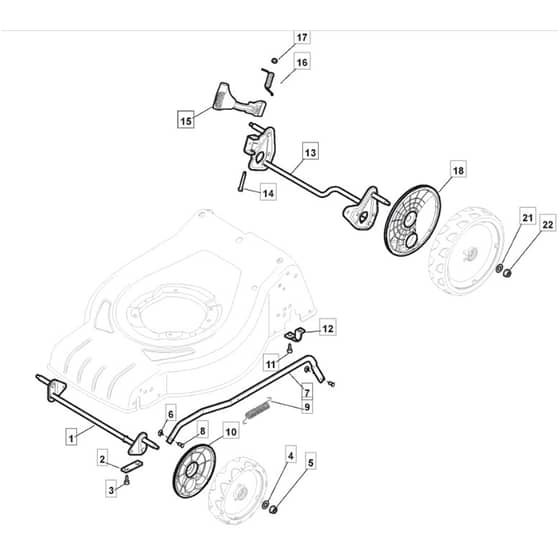

SP53 - 2019-2020 - 295546048/M19 - Mountfield Rotary Mower Height Adjusting Diagram

SP53 - 2019-2020 - 295546048/M19 - Mountfield Rotary Mower Height Adjusting Diagram
SP53 - 2019-2020 - 295546048/M19 - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield SP53 Parts Diagram

Product Name - SP 53

Model Year - 2019-2020

Model Type - CRC 534 WS

Art.N - 295546048/M19

Engine Model - ST 170 OHV Autochoke

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Front Wheel Axle MO381302853/1
Front Wheel Axle
 In stock
£31.15 £25.96

  2 Plate MO322545142/0
Plate
 Out of stock
£1.49 £1.24

  6 Plate MO112436050/0
Plate
 In stock
£1.75 £1.46

  7 Rod. Height Adjustment From S.N 20BA2WBH074119 MO322869679/1
Rod. Height Adjustment From S.N 20BA2WBH074119
 Out of stock
£24.38 £20.32

  7 Rod. Height Adjustment To S.N 20BA2WBH070882 MO322869679/0
Rod. Height Adjustment To S.N 20BA2WBH070882
 Out of stock
£22.46 £18.72

  8 Pin MO122519823/0
Pin
 In stock
£2.17 £1.81

  9 Spring MO122446193/0
Spring
 Out of stock
£4.60 £3.83

  10 Protection. Wheel As Optional MO322600145/0
Protection. Wheel As Optional
 Out of stock
£1.63 £1.36

  11 Screw MO112728698/0
Screw
 Out of stock
£1.48 £1.23

  12 Plate MO322545152/0
Plate
 Out of stock
£1.49 £1.24

  13 Rear Wheel Axle MO381302849/1
Rear Wheel Axle
 Out of stock
£48.76 £40.63

  14 Pin MO122534131/0
Pin
 Out of stock
£1.49 £1.24

  15 Wheels Rear Adj. Lever MO381003458/1
Wheels Rear Adj. Lever
 Out of stock
£10.43 £8.69

  15 Wheels Rear Adj. Lever with STIGA Logo Black Knob From S.N 20BA2WBH073719 MO381003459/1
Wheels Rear Adj. Lever with STIGA Logo Black Knob From S.N 20BA2WBH073719
 Out of stock
£12.94 £10.78

  15 Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718 MO381003459/0
Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718
 Out of stock
£13.37 £11.14

  16 Spring MO122446192/0
Spring
 Out of stock
£2.04 £1.70

  17 Nut MO112154510/0
Nut
 In stock
£1.49 £1.24

  18 Protection. Wheel MO322600240/0
Protection. Wheel
 Out of stock
£5.15 £4.29

  21 Washer MO112521350/0
Washer
 In stock
£1.49 £1.24

  22 Low Self-Locking Nut M8 MO112155000/0
Low Self-Locking Nut M8
 In stock
£1.49 £1.24


Description

Mountfield SP53 Parts Diagram

Product Name - SP 53

Model Year - 2019-2020

Model Type - CRC 534 WS

Art.N - 295546048/M19

Engine Model - ST 170 OHV Autochoke
