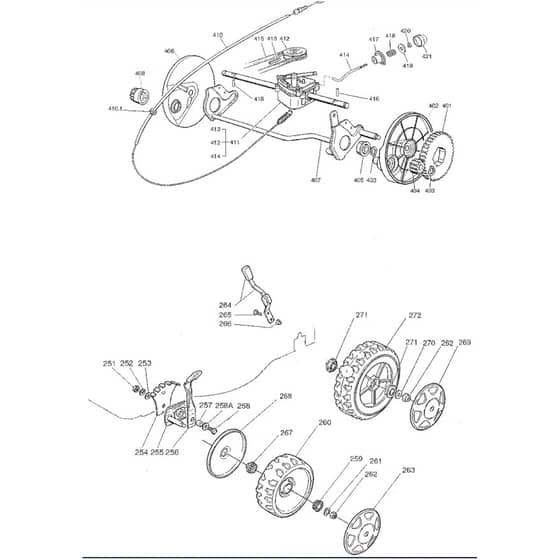

SP53 - 2003 - 23-5681-92 - Mountfield Rotary Mower Transmission Diagram

SP53 - 2003 - 23-5681-92 - Mountfield Rotary Mower Transmission Diagram
SP53 - 2003 - 23-5681-92 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield SP53 Parts Diagram

Product Name - SP 53

Model Year - 2003

Model Type - N/A

Art.N - 23-5681-92

Ref. Img. Part No. Details
  1 Nut
Nut
MO112293200/0 Out of stock
Nut
£1.49 £1.24

  252 Washer
Washer
MO112583500/0 Out of stock
Washer
£1.49 £1.24

  253 Washer
Washer
MO112523070/0 Out of stock
Washer
£1.49 £1.24

  254 Sector. Height Adjustment
Sector. Height Adjustment
MO322735547/0 Out of stock
Sector. Height Adjustment
£2.17 £1.81

  255 Wheel Support
Wheel Support
MO381005082/0 In stock
Wheel Support
£16.54 £13.78

  256 Lever. Height Adjustment
Lever. Height Adjustment
MO481003285/1 In stock
Lever. Height Adjustment
£18.79 £15.66

  257 Spacer
Spacer
MO122171001/0 Out of stock
Spacer
£1.90 £1.58

  258 Screw
Screw
MO112793701/0 Out of stock
Screw
£1.49 £1.24

  258 258A Washer
258A Washer
MO9699-0090-02 Out of stock
258A Washer
£1.90 £1.58

  259 Bushing
Bushing
MO322034509/0 Out of stock
Bushing
£1.75 £1.46

  260 Wheel
Wheel
MO322686091/1 In stock
Wheel
£6.50 £5.42

  261 Washer
Washer
MO112523060/0 In stock
Washer
£1.49 £1.24

  262 Lock Nut
Lock Nut
MO112155000/0 Out of stock
Lock Nut
£1.49 £1.24

  264 Lever. Height Adjustment
Lever. Height Adjustment
MO381003279/2 Out of stock
Lever. Height Adjustment
£31.15 £25.96

  265 Screw
Screw
MO112789000/0 Out of stock
Screw
£1.49 £1.24

  266 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.49 £1.24

  268 Protection. Wheel
Protection. Wheel
MO322600095/0 Out of stock
Protection. Wheel
£1.49 £1.24

  270 Elastic Washer
Elastic Washer
MO112369500/0 Out of stock
Elastic Washer
£1.36 £1.13

  271 Ball Bearing
Ball Bearing
MO122122206/0 In stock
Ball Bearing
£1.75 £1.46

  272 Wheel
Wheel
MO381007360/0 Out of stock
Wheel
£15.98 £13.32

  401 Ring Gear
Ring Gear
MO122120105/2 Out of stock
Ring Gear
£9.55 £7.96

  402 Wheel Protection-Lh
Wheel Protection-Lh
MO122600093/0 Out of stock
Wheel Protection-Lh
£3.25 £2.71

  403 Circlip
Circlip
MO112608600/0 Out of stock
Circlip
£1.49 £1.24

  404 Pinion-Lh
Pinion-Lh
MO122570120/1 In stock
Pinion-Lh
£7.12 £5.93

  405 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.38 £2.82

  406 Wheel Protection-Rh
Wheel Protection-Rh
MO122600092/0 Out of stock
Wheel Protection-Rh
£3.25 £2.71

  407 Rear Wheel Axle
Rear Wheel Axle
MO381000147/0 Out of stock
Rear Wheel Axle
£26.41 £22.01

  408 Pinion-Rh
Pinion-Rh
MO322570138/0 In stock
Pinion-Rh
£7.12 £5.93

  410 Cable Rear Drive
Cable Rear Drive
MO181000645/0 In stock
Cable Rear Drive
£28.44 £23.70

  412 Belt Pulley
Belt Pulley
MO122601909/0 In stock
Belt Pulley
£5.42 £4.52

  413 Pin
Pin
MO112645705/0 Out of stock
Pin
£1.49 £1.24

  414 Adjustment Rod
Adjustment Rod
MO122033283/0 In stock
Adjustment Rod
£4.48 £3.73

  415 Belt
Belt
MO135063902/1 Out of stock
Belt
£9.23 £7.69

  416 Pin
Pin
MO122753000/0 In stock
Pin
£1.49 £1.24

  417 Bushing
Bushing
MO122041957/1 Out of stock
Bushing
£1.49 £1.24

  418 Spring
Spring
MO122450063/0 Out of stock
Spring
£1.49 £1.24

  419 Washer
Washer
MO322680009/0 Out of stock
Washer
£1.75 £1.46

  420 Lock Nut
Lock Nut
MO112154510/0 In stock
Lock Nut
£1.49 £1.24

  421 Hub Cap
Hub Cap
MO122110230/0 In stock
Hub Cap
£1.49 £1.24


Description

Mountfield SP53 Parts Diagram

Product Name - SP 53

Model Year - 2003

Model Type - N/A

Art.N - 23-5681-92
