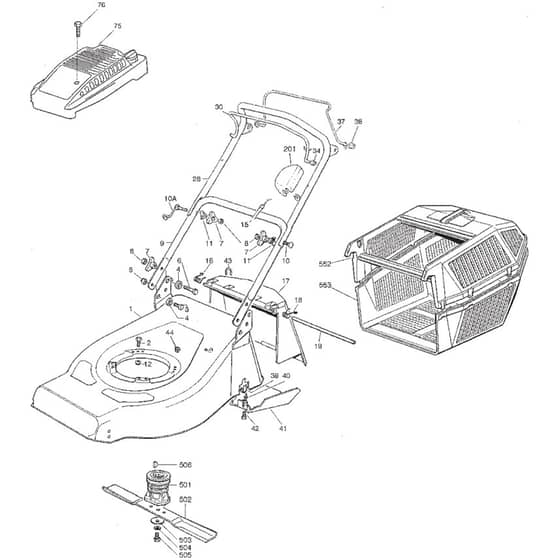

SP53 - 2003 - 23-5681-92 - Mountfield Rotary Mower Grass Bag Diagram

SP53 - 2003 - 23-5681-92 - Mountfield Rotary Mower Grass Bag Diagram
SP53 - 2003 - 23-5681-92 - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield SP53 Parts Diagram

Product Name - SP 53

Model Year - 2003

Model Type - N/A

Art.N - 23-5681-92

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Screw L . 60 mm MO9997-0860-16
Screw L . 60 mm
 Out of stock
£1.49 £1.24

  3 Screw MO9997-0816-16
Screw
 Out of stock
£1.49 £1.24

  4 Bushing MO322041955/0
Bushing
 Out of stock
£1.49 £1.24

  6 Screw MO112793701/0
Screw
 Out of stock
£1.49 £1.24

  7 Knob MO122399900/0
Knob
 In stock
£1.49 £1.24

  8 Nut MO112293200/0
Nut
 Out of stock
£1.49 £1.24

  9 Handle-Lower MO381006990/0
Handle-Lower
 Out of stock
£22.07 £18.39

  10 10A Screw MO181003801/1
10A Screw
 In stock
£3.25 £2.71

  10 Screw MO112819201/0
Screw
 Out of stock
£2.70 £2.25

  11 Washer MO122680006/1
Washer
 In stock
£1.75 £1.46

  12 Lock Nut MO112155000/0
Lock Nut
 Out of stock
£1.49 £1.24

  12 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  15 Cable. Thread Engine Brake MO181000643/0
Cable. Thread Engine Brake
 Out of stock
£15.04 £12.53

  16 Spring-Rh MO122450410/1
Spring-Rh
 Out of stock
£11.66 £9.72

  17 Stone Guard MO181007302/2
Stone Guard
 Out of stock
£21.65 £18.04

  18 Spring-Lh MO122450420/1
Spring-Lh
 Out of stock
£1.90 £1.58

  19 Pivot Pin MO122517906/1
Pivot Pin
 Out of stock
£14.11 £11.76

  30 Lever. Thread Engine Brake MO181003291/3
Lever. Thread Engine Brake
 Out of stock
£14.35 £11.96

  34 Bushing MO122041966/0
Bushing
 In stock
£1.49 £1.24

  37 Drive Lever MO181003288/1
Drive Lever
 Out of stock
£11.17 £9.31

  38 Bushing MO322041965/1
Bushing
 Out of stock
£1.49 £1.24

  39 Plate MO322545152/0
Plate
 Out of stock
£1.49 £1.24

  40 Screw MO112731350/0
Screw
 Out of stock
£1.49 £1.24

  41 Belt Protection MO122060193/0
Belt Protection
 In stock
£5.42 £4.52

  42 Screw MO112728903/0
Screw
 In stock
£1.36 £1.13

  43 Snap Ring MO112000930/0
Snap Ring
 In stock
£1.49 £1.24

  44 Rubber Insert MO322291150/0
Rubber Insert
 Out of stock
£1.49 £1.24

  76 Screw MO118562804/0
Screw
 Out of stock
£3.65 £3.04

  99 Outfit. Screws Ej ill.not ill. MO381008614/3
Outfit. Screws Ej ill.not ill.
 Out of stock
£14.35 £11.96

  201 Protection MO122601000/0
Protection
 Out of stock
£1.49 £1.24

  501 Blade Holder W.Pulley MO122465607/4
Blade Holder W.Pulley
 In stock
£9.02 £7.52

  502 Blade MO181004381/1
Blade
 In stock
£16.62 £13.85

  503 Elastic Washer MO122160400/0
Elastic Washer
 In stock
£1.75 £1.46

  504 Washer MO112523080/0
Washer
 In stock
£1.49 £1.24

  505 Screw MO112735698/0
Screw
 In stock
£1.75 £1.46

  506 Key MO112139100/0
Key
 In stock
£1.49 £1.24

  552 Grass Box-Upper MO122486076/0
Grass Box-Upper
 Out of stock
£38.50 £32.08

  553 Grass Box-Lower MO122486077/0
Grass Box-Lower
 Out of stock
£38.45 £32.04


Description

Mountfield SP53 Parts Diagram

Product Name - SP 53

Model Year - 2003

Model Type - N/A

Art.N - 23-5681-92
