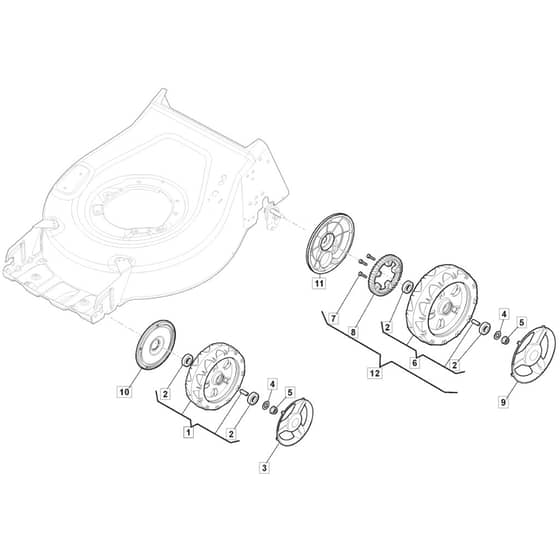

SP51 H - 2022-2023 - 2L0536133/MC - Mountfield Rotary Mower Wheels Diagram

Name: SP51 H - 2022-2023 - 2L0536133/MC - Mountfield Rotary Mower Wheels Diagram
SKU: sp51_h_2l0536133_mc_wheels-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP51 H - 2022-2023 - 2L0536133/MC - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield SP51 H Parts Diagram

Product Name - SP 51 H

Model Year - 2022-2023

Model Type - CP1 534 S

Art.N - 2L0536133/MC

Engine Model - GCVx145 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007416/3 Out of stock	Wheel Ø 200	£16.43 £13.69
2	MO119216035/0 In stock	Bearing	£3.35 £2.79
3	MO322110687/0 Out of stock	Hub Cap Grey	£2.42 £2.02
4	MO112521350/0 In stock	Washer	£1.48 £1.23
5	MO112155000/0 In stock	Nut	£1.48 £1.23
7	MO112728706/0 In stock	Screw Only for Self Propelled Models	£1.48 £1.23
9	MO322110641/0 Out of stock	Hub Cap Grey	£3.04 £2.53
10	MO322600145/0 Out of stock	Protection. Wheel As Optional	£1.66 £1.38
11	MO322600240/0 Out of stock	Protection. Wheel Only for Self Propelled Models	£5.09 £4.24
12	MO381007472/2 In stock	Wheel Assembly D.280	£36.92 £30.77
