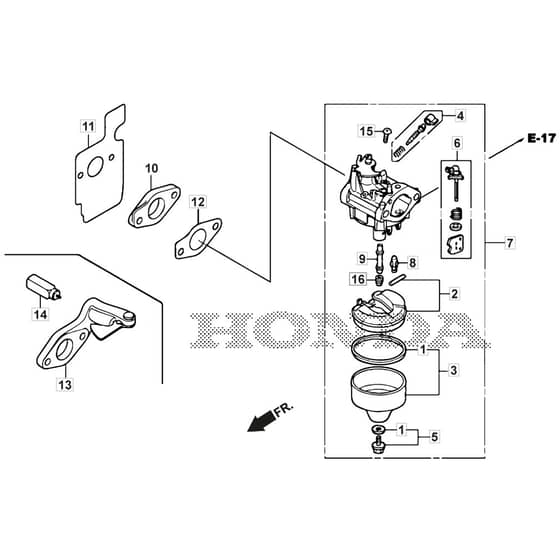

SP51 H - 2022-2023 - 2L0536133/MC - Mountfield Rotary Mower Carburettor Diagram

Description

Mountfield SP51 H Parts Diagram

Product Name - SP 51 H

Model Year - 2022-2023

Model Type - CP1 534 S

Art.N - 2L0536133/MC

Engine Model - GCVx145 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-Z9L-811 In stock	Gasket Set	£4.44 £3.70
2	HP16013-ZL1-003 Out of stock	Float Set	£38.29 £31.91
3	HP16015-Z9L-811 Out of stock	Chamber Set. Float	£52.45 £43.71
4	HP16016-Z0Y-841 Out of stock	Screw Set	£14.20 £11.83
5	HP16028-ZK7-S91 Out of stock	Screw Set	£16.45 £13.71
6	HP16044-Z9L-811 Out of stock	Choke Set	£26.52 £22.10
7	HP16100-Z9T-811 Out of stock	Carburetor Assy. (Bb77A A)	£148.88 £124.07
8	HP16155-ZM0-013 Out of stock	Valve. Float	£42.60 £35.50
9	HP16166-Z9P-811 Out of stock	Nozzle. Main	£34.84 £29.03
11	HP16212-Z9L-000 Out of stock	Packing. Insulator	£11.69 £9.74
12	HP16221-Z9L-000 Out of stock	Packing. Carburetor	£2.60 £2.17
13	HP16600-Z9L-000 Out of stock	Control Assy. Choke	£70.14 £58.45
14	HP16620-Z8D-842 Out of stock	Thermowax Assy.	£44.98 £37.48
15	HP93500-050-060H Out of stock	Screw. Pan. 5X6	£2.28 £1.90
16	HP99101-1240600 Out of stock	Jet. Main. #60	£12.10 £10.08
16	HP99101-1240620 Out of stock	Jet. Main. #62	£13.48 £11.23
16	HP99101-1240650 Out of stock	Jet	£12.50 £10.42
