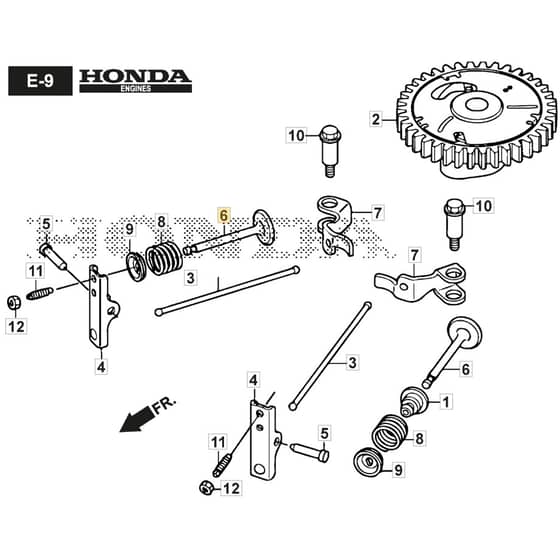

SP51 H - 2022-2023 - 2L0536133/MC - Mountfield Rotary Mower Camshaft Diagram

Name: SP51 H - 2022-2023 - 2L0536133/MC - Mountfield Rotary Mower Camshaft Diagram
SKU: sp51_h_2l0536133_mc_camshaft-group
Price: 1.85 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP51 H - 2022-2023 - 2L0536133/MC - Mountfield Rotary Mower Camshaft Diagram

Description

Mountfield SP51 H Parts Diagram

Product Name - SP 51 H

Model Year - 2022-2023

Model Type - CP1 534 S

Art.N - 2L0536133/MC

Engine Model - GCVx145 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12209-Z8B-003 Out of stock	Seal. Valve Stem	£9.96 £8.30
2	HP14100-Z9L-000 Out of stock	Camshaft Assy.	£121.68 £101.40
3	HP14410-Z9L-000 Out of stock	Rod. Push	£6.97 £5.81
4	HP14431-Z9L-000 Out of stock	Arm. Valve Rocker	£7.58 £6.32
5	HP14461-Z9L-000 Out of stock	Shaft. Rocker Arm	£2.89 £2.41
6	HP14711-Z9L-000 Out of stock	Valve. In.	£13.45 £11.21
7	HP14731-Z9L-000 Out of stock	Lifter. Valve	£11.18 £9.32
8	HP14751-ZL8-000 Out of stock	Spring. Valve	£2.82 £2.35
9	HP14771-Z0J-000 Out of stock	Retainer. Valve Spring	£6.18 £5.15
10	HP90001-Z9L-000 Out of stock	Bolt. Shoulder. 6mm	£3.06 £2.55
11	HP90012-ZCJ-000 Out of stock	Screw. Tappet Adjusting	£3.26 £2.72
12	HP90206-Z6L-000 Out of stock		£2.22 £1.85
