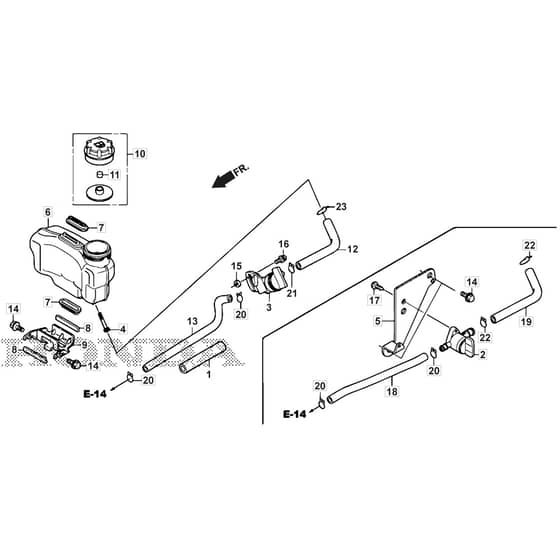

SP51 H - 2020-2021 - 295546138/MC - Mountfield Rotary Mower Fuel Tank Diagram

SP51 H - 2020-2021 - 295546138/MC - Mountfield Rotary Mower Fuel Tank Diagram
SP51 H - 2020-2021 - 295546138/MC - Mountfield Rotary Mower Fuel Tank Diagram

Description

Mountfield SP51 H Parts Diagram

Product Name - SP 51 H

Model Year - 2020-2021

Model Type - CSC 534 WS

Art.N - 295546138/MC

Engine Model - GCVx145 OHV Autochoke

Ref. Img. Part No. Details
  1 Cock Assy. Fuel
Cock Assy. Fuel
HP16950-Z0Y-003 Out of stock
Cock Assy. Fuel
£42.88 £35.73

  4 Strainer. Fuel
Strainer. Fuel
HP16952-Z9R-000 Out of stock
Strainer. Fuel
£10.56 £8.80

  5 Stay. Fuel Cock
Stay. Fuel Cock
HP16961-Z9L-000 Out of stock
Stay. Fuel Cock
£10.31 £8.59

  6 Tank. Fuel
Tank. Fuel
HP17511-Z9L-800 Out of stock
Tank. Fuel
£36.06 £30.05

  7 Rubber A. Tank Mounting
Rubber A. Tank Mounting
HP17532-Z9L-000 Out of stock
Rubber A. Tank Mounting
£6.37 £5.31

  8 Rubber B. Tank Mounting
Rubber B. Tank Mounting
HP17533-Z9L-000 Out of stock
Rubber B. Tank Mounting
£4.07 £3.39

  9 Stay. Fuel Tank
Stay. Fuel Tank
HP17561-Z9L-000 Out of stock
Stay. Fuel Tank
£9.54 £7.95

  10 Cap Assy. Fuel Tank
Cap Assy. Fuel Tank
HP17620-Z9L-800 Out of stock
Cap Assy. Fuel Tank
£20.94 £17.45

  11 Sponge. Fuel Cap Breather
Sponge. Fuel Cap Breather
HP17622-888-010 Out of stock
Sponge. Fuel Cap Breather
£1.68 £1.40

  14 Bolt. Flange. 6X14 (Ct200)
Bolt. Flange. 6X14 (Ct200)
HP90014-952-000 Out of stock
Bolt. Flange. 6X14 (Ct200)
£3.95 £3.29

  17 Screw. Tapping. 5X12 (Po)
Screw. Tapping. 5X12 (Po)
HP93913-252-20 Out of stock
Screw. Tapping. 5X12 (Po)
£1.42 £1.18

  20 Clip. Tube (B8)
Clip. Tube (B8)
HP95002-02080 In stock
Clip. Tube (B8)
£1.24 £1.03

  22 Tube Clip
Tube Clip
HP95002-02120 Out of stock
Tube Clip
£1.69 £1.41


Description

Mountfield SP51 H Parts Diagram

Product Name - SP 51 H

Model Year - 2020-2021

Model Type - CSC 534 WS

Art.N - 295546138/MC

Engine Model - GCVx145 OHV Autochoke
