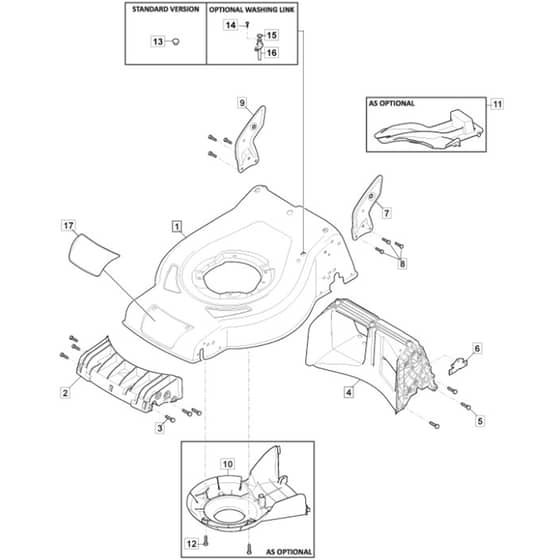

SP51 H - 2020-2021 - 295546138/MC - Mountfield Rotary Mower Deck Diagram

Name: SP51 H - 2020-2021 - 295546138/MC - Mountfield Rotary Mower Deck Diagram
SKU: sp51_h_295546138_mc_deck-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP51 H - 2020-2021 - 295546138/MC - Mountfield Rotary Mower Deck Diagram

Description

Mountfield SP51 H Parts Diagram

Product Name - SP 51 H

Model Year - 2020-2021

Model Type - CSC 534 WS

Art.N - 295546138/MC

Engine Model - GCVx145 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004949/1 Out of stock	Black Deck From 01-9-2018	£171.41 £142.84
1	MO381004940/1 Out of stock	Red Deck	£171.41 £142.84
1	MO381004949/0 Out of stock	Black Deck To replace the old chassis is necessary to order also pos.17 To 31-8-2018	£177.77 £148.14
2	MO322108308/1 Out of stock	Rear Conveyor Assy	£12.64 £10.53
4	MO322108392/0 Out of stock	Rear Conveyor Assy	£18.41 £15.34
5	MO112728904/0 Out of stock	Screw	£1.39 £1.16
6	MO322545213/0 Out of stock	Plate	£1.78 £1.48
7	MO381005167/1 Out of stock	Left Bracket	£7.37 £6.14
8	MO112727801/0 Out of stock	Screw	£1.39 £1.16
9	MO381005165/1 Out of stock	Right Bracket	£7.00 £5.83
10	MO322060250/1 In stock	Belt Protection As Optional	£9.79 £8.16
11	MO322140244/1 In stock	Mulching Deflector As Optional	£14.74 £12.28
12	MO112728903/0 In stock	Screw As Optional	£1.28 £1.07
13	MO322820077/1 Out of stock	Cap	£1.39 £1.16
14	MO112728450/0 In stock	Screw	£1.39 £1.16
15	MO119035000/0 Out of stock	Or Ring	£4.57 £3.81
16	MO322034002/0 Out of stock	Washing Connection	£1.54 £1.28
17	MO322055606/0 Out of stock	Front Deck Insert Cs53 [Black]	£2.66 £2.22
