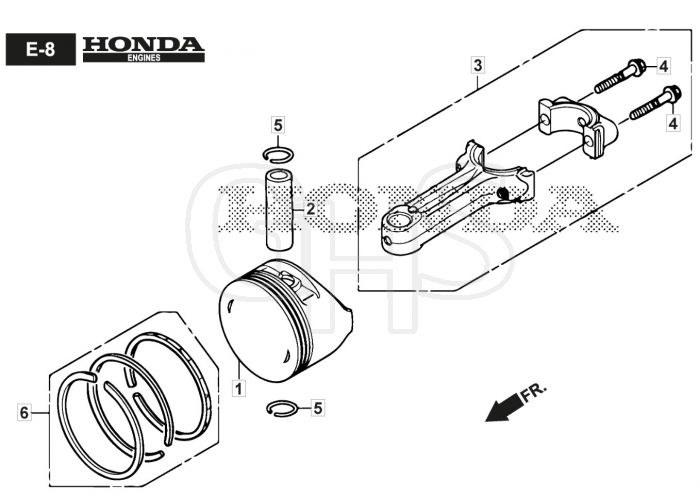

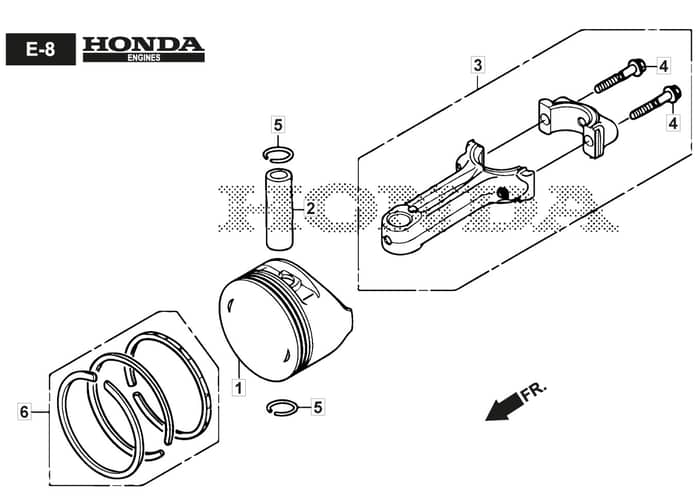

SP505R V - 2021 - 294519038/M19 - Mountfield Piston Connecting Rod Diagram

SP505R V - 2021 - 294519038/M19 - Mountfield Piston Connecting Rod Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP505R V - 2021 - 294519038/M19 - Mountfield Piston Connecting Rod Diagram

SP505R V - 2021 - 294519038/M19 - Mountfield Piston Connecting Rod Diagram

Description

Mountfield SP505R V Parts Diagram

Model Year - 2021

Model Type - MP2 504 SV-R

Art.N - 294519038/M19

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HP13101-Z9L-000 Out of stock	Piston		£39.25 £32.71
	2		HP13111-ZE0-000 Out of stock	Pin. Piston		£11.81 £9.84
	3		HP13200-Z9L-000 Out of stock	Rod Assy. Connecting		£55.18 £45.98
	4		HP90001-Z1L-000 Out of stock	Bolt. Connecting Rod		£3.97 £3.31
	5		HP90551-ZE0-000 Out of stock	Clip. Piston Pin. 13mm		£1.97 £1.64
	6		HP13010-Z9L-003 Out of stock	Ring Set. Piston		£34.28 £28.57

Description

Mountfield SP505R V Parts Diagram

Model Year - 2021

Model Type - MP2 504 SV-R

Art.N - 294519038/M19
