Description

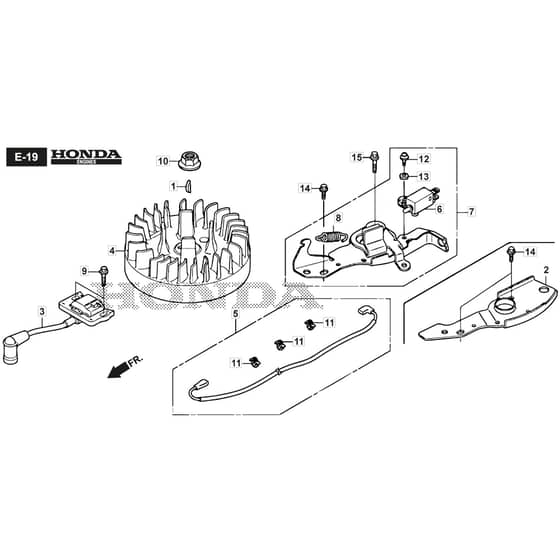

Mountfield SP505R V Parts Diagram

Product Name - SP 505 R V

Model Year - 2019-2021

Model Type - MP2 504 SV-R

Art.N - 294519038/M19

Engine Model - GCVx170 OHV Autochoke

Ref. Img. Part No. Details
  1 Key. Special Woodruff. 25X18
Key. Special Woodruff. 25X18
HP13331-Z8B-900 Out of stock
Key. Special Woodruff. 25X18
£2.28 £1.90

  3 Coil Assy. Ignition
Coil Assy. Ignition
HP30500-Z9L-004 Out of stock
Coil Assy. Ignition
£102.54 £85.45

  4 Flywheel Comp.
Flywheel Comp.
HP31110-Z9L-003 Out of stock
Flywheel Comp.
£110.28 £91.90

  5 Cord. Stop Switch
Cord. Stop Switch
HP32195-Z9L-000 Out of stock
Cord. Stop Switch
£12.54 £10.45

  6 Switch Assy. Engine Stop
Switch Assy. Engine Stop
HP35120-Z9L-003 Out of stock
Switch Assy. Engine Stop
£26.48 £22.07

  7 Brake Assy.
Brake Assy.
HP75100-Z9L-010 Out of stock
Brake Assy.
£46.31 £38.59

  8 Spring. Brake Lever
Spring. Brake Lever
HP75113-Z9L-020 Out of stock
Spring. Brake Lever
£2.48 £2.07

  9 Bolt. Flange. 6X23 (Ct200)
Bolt. Flange. 6X23 (Ct200)
HP90018-ZE1-000 Out of stock
Bolt. Flange. 6X23 (Ct200)
£3.52 £2.93

  10 Nut. Flange. 14mm
Nut. Flange. 14mm
HP90213-Z9L-000 Out of stock
Nut. Flange. 14mm
£7.73 £6.44

  11 Clip. Harness Band (Black) (145mm)
Clip. Harness Band (Black) (145mm)
HP91541-S0A-003 Out of stock
Clip. Harness Band (Black) (145mm)
£2.93 £2.44

  12 Screw-Washer. 4X12
Screw-Washer. 4X12
HP93892-0401200 Out of stock
Screw-Washer. 4X12
£1.90 £1.58

  13 Washer. Plain. 4mm
Washer. Plain. 4mm
HP94103-040-00 Out of stock
Washer. Plain. 4mm
£0.91 £0.76

  14 Bolt. Flange. 6X14
Bolt. Flange. 6X14
HP95701-0601408 Out of stock
Bolt. Flange. 6X14
£1.50 £1.25

  15 Flange Bolt 6 X 22
Flange Bolt 6 X 22
HP95701-0602208 Out of stock
Flange Bolt 6 X 22
£1.75 £1.46


Description

Mountfield SP505R V Parts Diagram

Product Name - SP 505 R V

Model Year - 2019-2021

Model Type - MP2 504 SV-R

Art.N - 294519038/M19

Engine Model - GCVx170 OHV Autochoke
