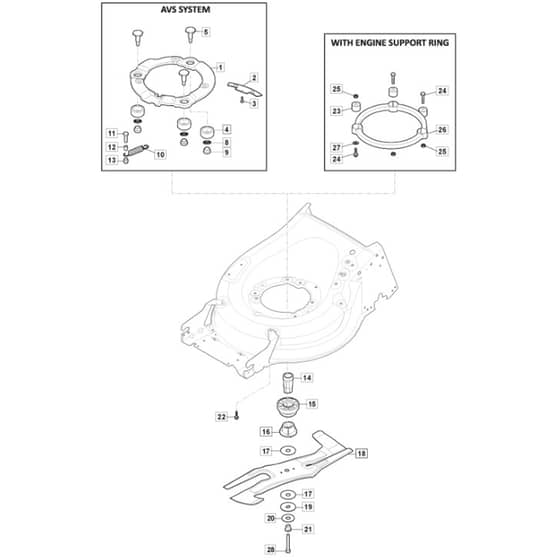

SP505R V - 2019-2021 - 294519038/M19 - Mountfield Rotary Mower Blade Diagram

Description

Mountfield SP505R V Parts Diagram

Product Name - SP 505 R V

Model Year - 2019-2021

Model Type - MP2 504 SV-R

Art.N - 294519038/M19

Engine Model - GCVx170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322207226/1 In stock	Flange	£33.10 £27.58
2	MO322551536/0 Out of stock	Plate	£3.56 £2.97

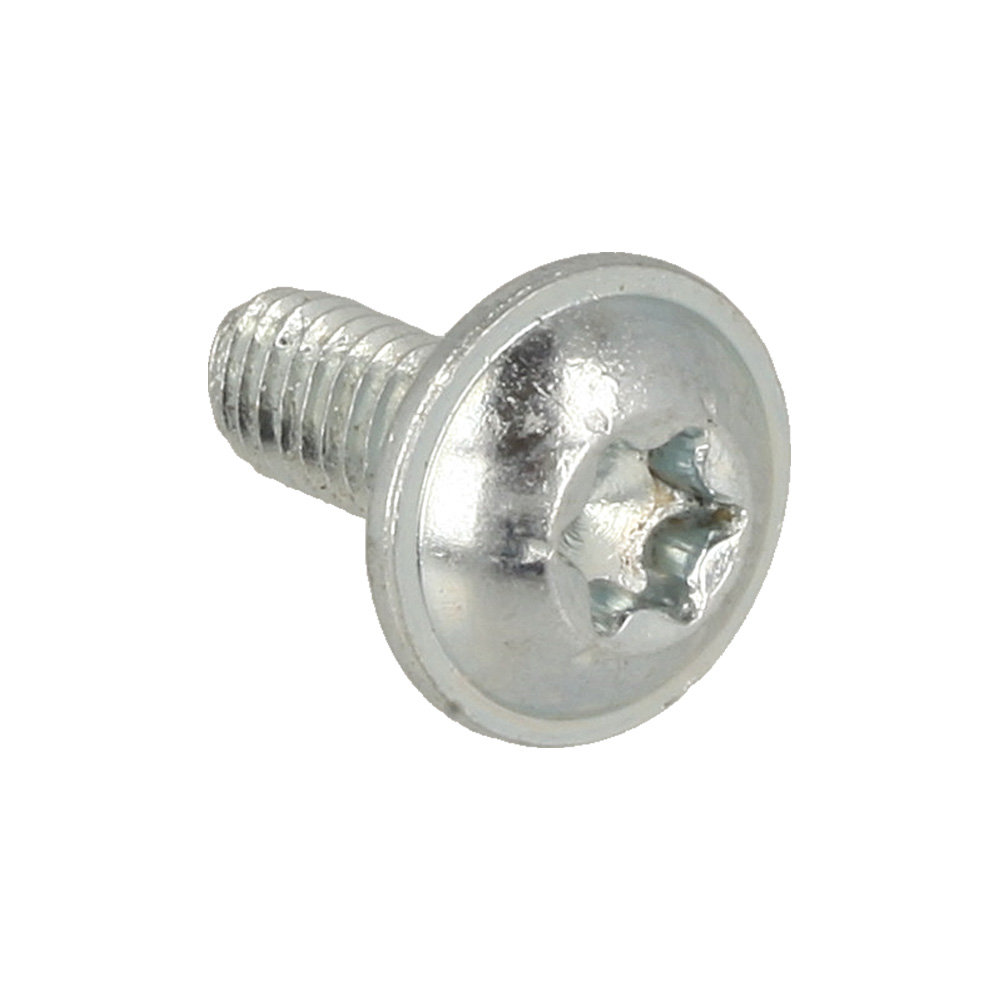

3	MO112728210/0 Out of stock	Screw	£1.34 £1.12
4	MO322250015/1 In stock	Grommet	£6.77 £5.64
5	MO122519816/0 In stock	Pin	£12.05 £10.04
8	MO112543002/0 Out of stock	Washer	£1.20 £1.00
9	MO112155000/0 In stock	Nut	£1.48 £1.23
10	MO122450439/0 Out of stock	Spring	£3.22 £2.68
11	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
12	MO122170846/0 Out of stock	Spacer	£2.94 £2.45
13	MO112154510/0 In stock	Nut	£1.48 £1.23
14	MO122785494/0 In stock	Support	£14.06 £11.72
15	MO122601933/0 In stock	Pulley	£56.24 £46.87
16	MO122465656/0 In stock	Blade Hub	£10.51 £8.76
17	MO322672110/1 In stock	Washer	£1.52 £1.27
18	MO1111-9256-02 Out of stock	Blade	£65.62 £54.68
18	MO181004415/0 In stock	Blade	£54.74 £45.62
19	MO322672105/0 In stock	Washer	£3.40 £2.83
20	MO112508120/0 In stock	Cup Spring	£3.35 £2.79
21	MO122041943/0 In stock	Bush	£9.24 £7.70
22	MO112735108/1 In stock	Screw To fix the Engine	£2.00 £1.67
23	MO122170835/0 Out of stock	Spacer	£6.29 £5.24
24	MO112691700/0 Out of stock	Screw	£1.74 £1.45
25	MO112154210/0 In stock	Nut	£1.61 £1.34
26	MO322170964/0 Out of stock	Protection	£3.95 £3.29
27	MO112521350/0 In stock	Washer	£1.48 £1.23
28	MO112736820/0 In stock	Hex-Head Screw 3.8" X 3"	£2.81 £2.34
