SP505 V SC - 2020 - 294513538/M20 - Mountfield Rotary Mower Fuel Tank Diagram

Description

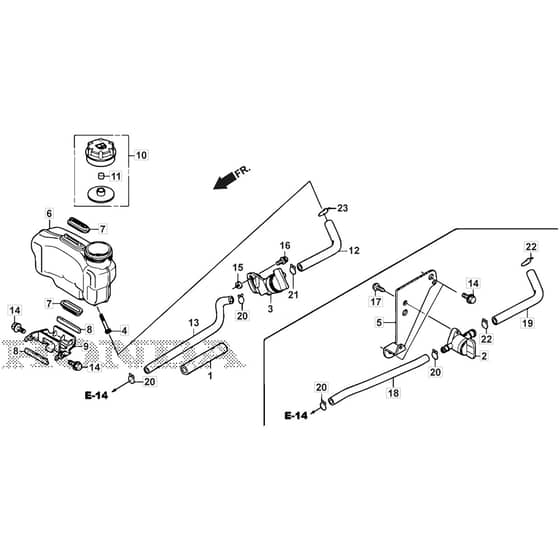

Mountfield SP505 V SC Parts Diagram

Product Name - SP 505 V SC

Model Year - 2020

Model Type - MP2 504 SVE

Art.N - 294513538/M20

Engine Model - GCVxe170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16950-Z0Y-003	Cock Assy. Fuel	Out of stock	£33.25 £27.71
4	HP16952-Z9R-000	Strainer. Fuel	Out of stock	£10.56 £8.80
5	HP16961-Z9L-000	Stay. Fuel Cock	Out of stock	£10.58 £8.82
6	HP17511-Z9L-800	Tank. Fuel	Out of stock	£37.00 £30.83
7	HP17532-Z9L-000	Rubber A. Tank Mounting	Out of stock	£7.32 £6.10
8	HP17533-Z9L-000	Rubber B. Tank Mounting	Out of stock	£4.18 £3.48
9	HP17561-Z9L-000	Stay. Fuel Tank	Out of stock	£9.78 £8.15
10	HP17620-Z9L-800	Cap Assy. Fuel Tank	Out of stock	£20.94 £17.45
11	HP17622-888-010	Sponge. Fuel Cap Breather	Out of stock	£1.68 £1.40
14	HP90014-952-000	Bolt. Flange. 6X14 (Ct200)	Out of stock	£4.26 £3.55
17	HP93913-252-20	Screw. Tapping. 5X12 (Po)	Out of stock	£1.45 £1.21
20	HP95002-02080	Clip. Tube (B8)	Out of stock	£1.26 £1.05
22	HP95002-02120	Tube Clip	Out of stock	£1.69 £1.41
